February 14, 2012 6816985H01-F

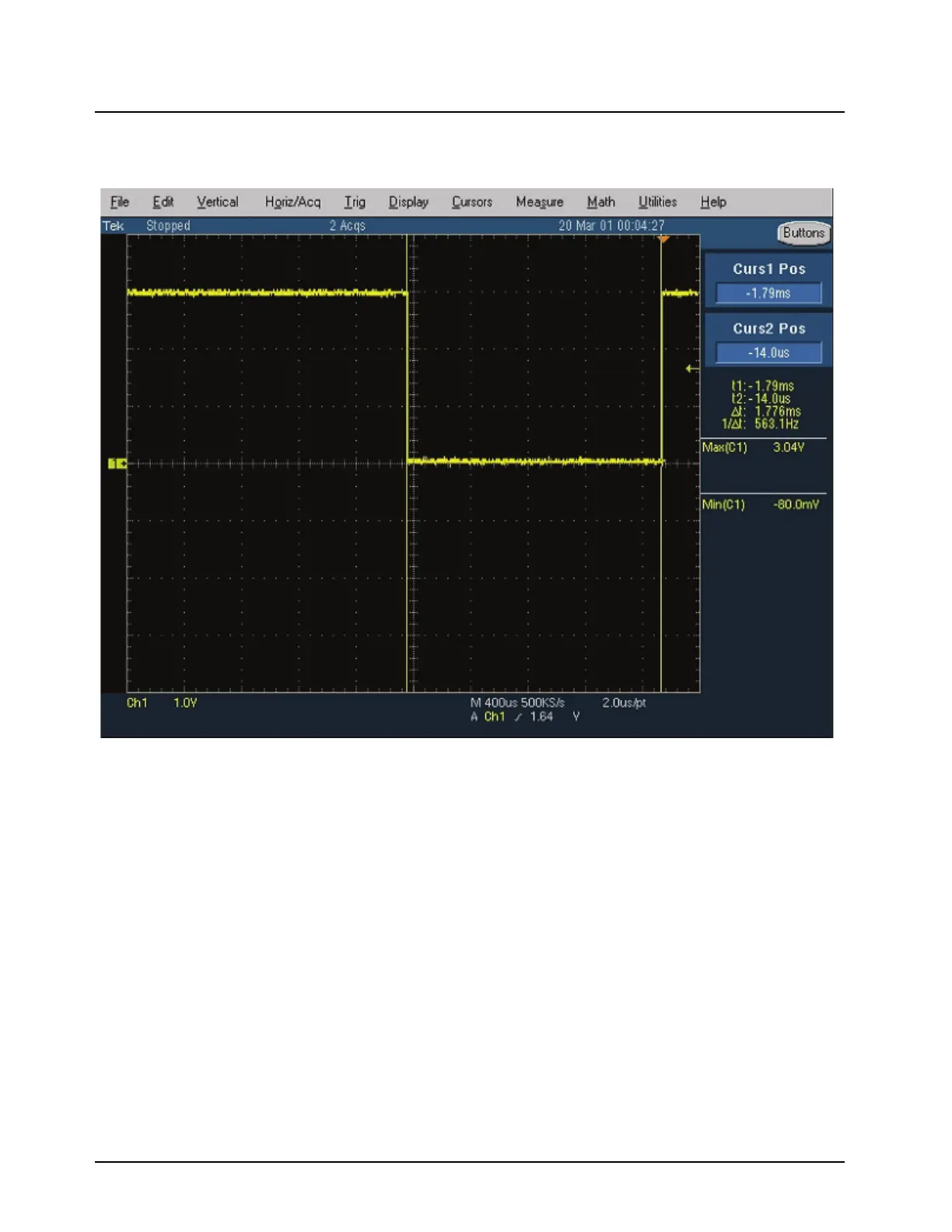

7.4-46 700/800 MHz Troubleshooting Waveforms: PP36 Abacus Chip Select
7.4.45PP36 Abacus Chip Select
Probe Point: U401, pin 25 (located under shield).
