6816985H01-F February 14, 2012

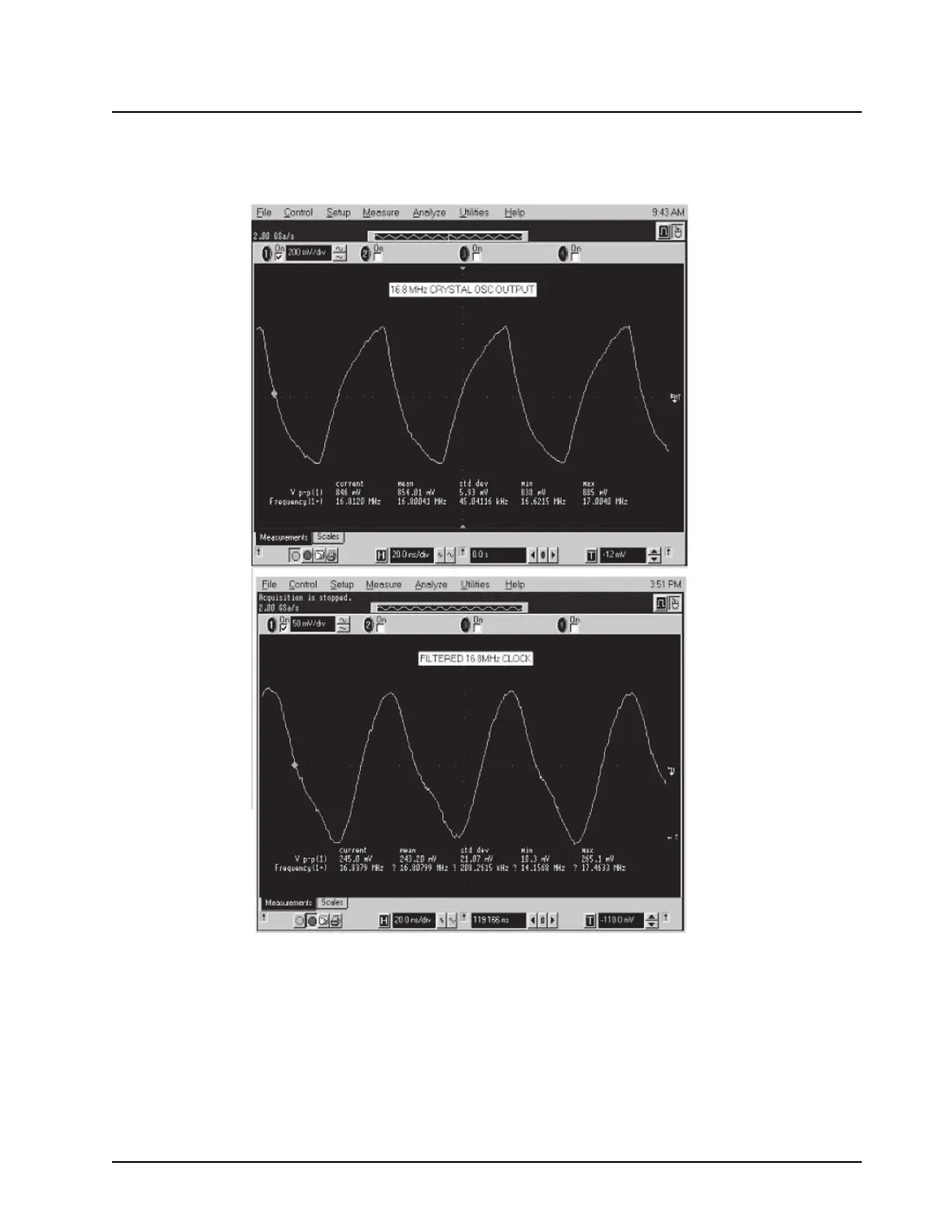

Troubleshooting Waveforms: PP12 Reference Crystal Output 7.5-17
7.5.16PP12 Reference Crystal Output
Probe point: R243, C293.
Crystal output AC coupled. Peak-to-peak value is accurate.
