Troubleshooting Waveforms: TP14 1st LO Control Voltage 7.5-19
7.5.18TP14 1st LO Control Voltage

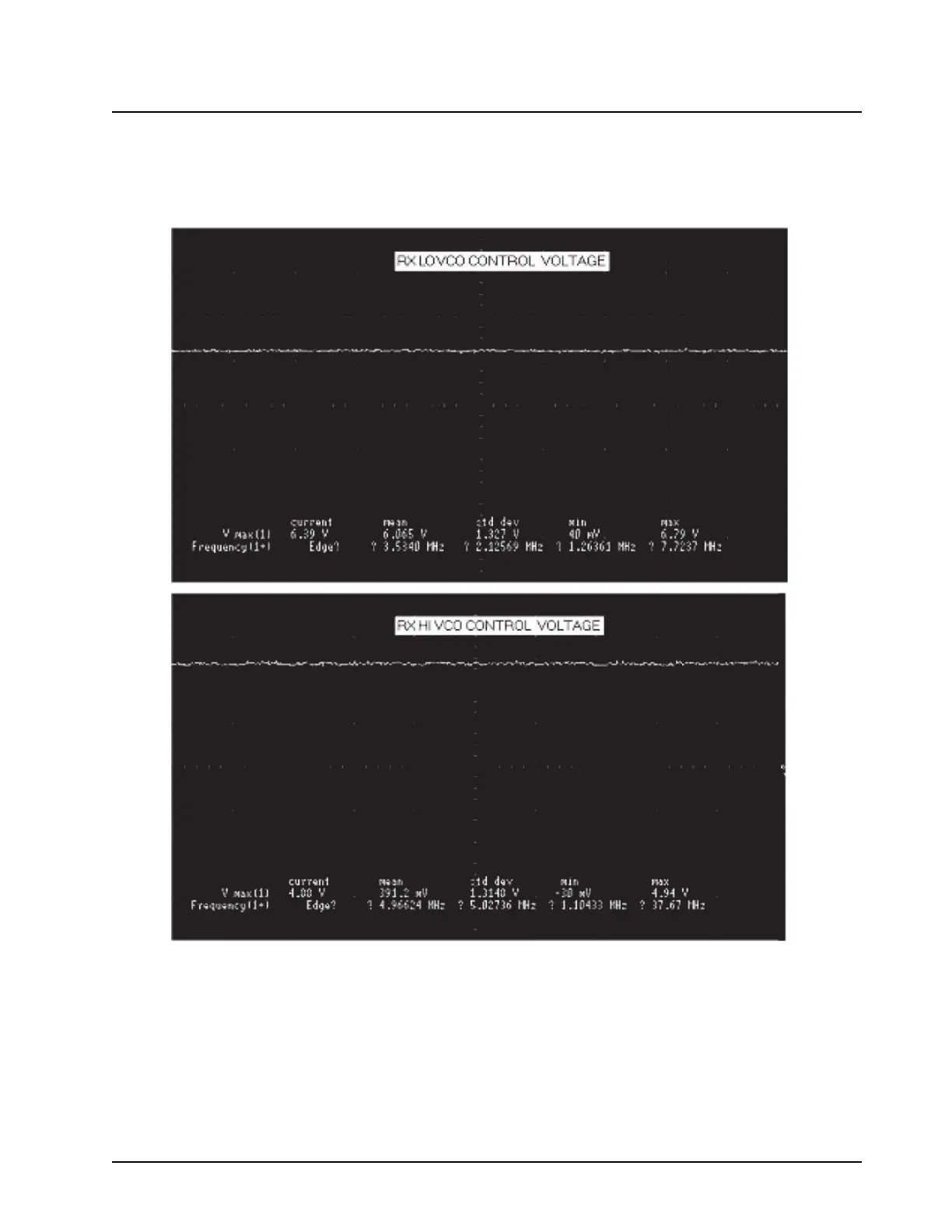

Test point TP202
Typical value when tuned to receive at 935.0625 MHz.
Typical value when tuned to receive at 940.9875 MHz.
