7.5-28 Troubleshooting Waveforms: PP23 Preselector 1 Output
7.5.27PP23 Preselector 1 Output
Probe point: FL1, pin 2.

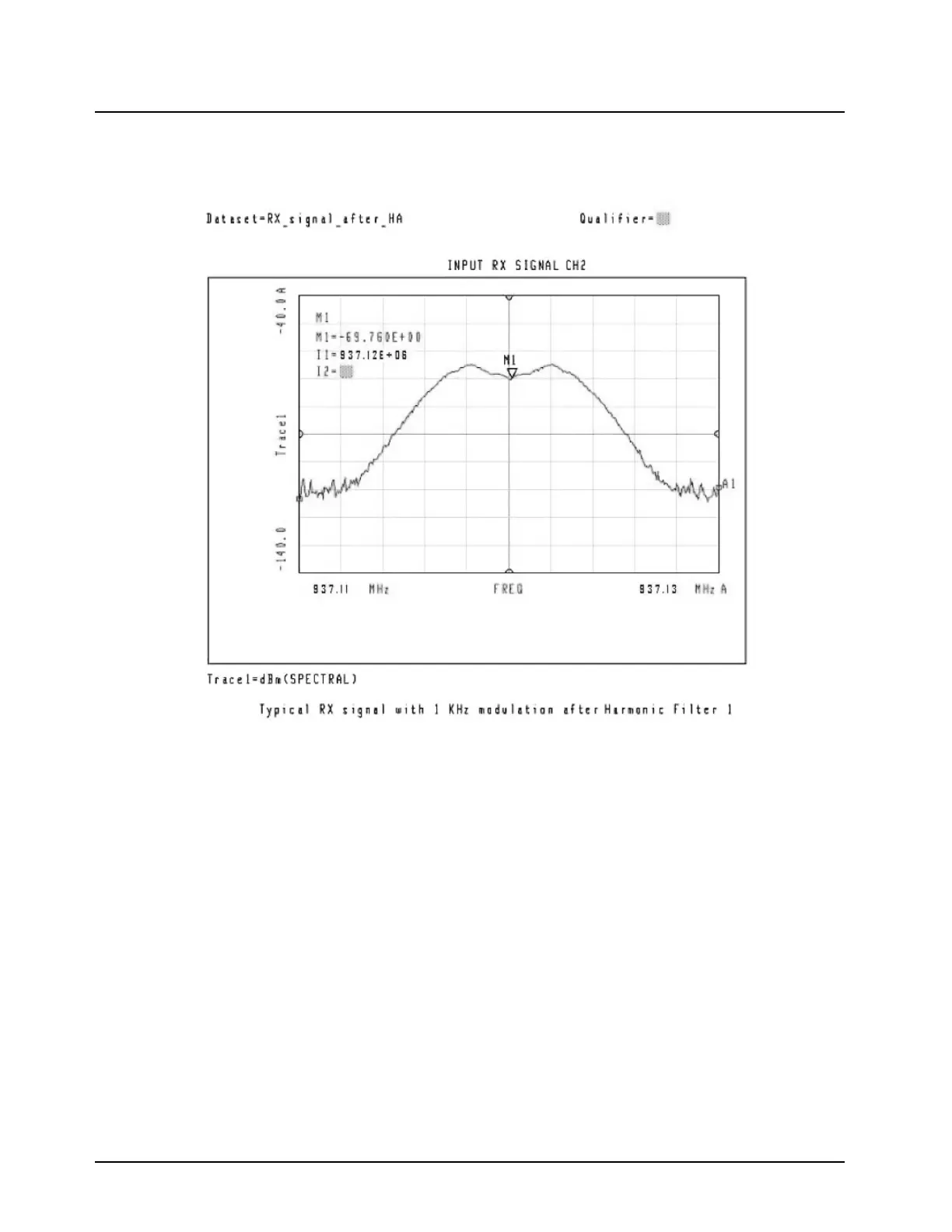

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
