Motorola ATS 3000 User Manual

9.3-40 UHF2 Schematics, Board Overlays, and Parts Lists
February 14, 2012 6816985H01-F
Notes:
1. For optimum performance, order replacement diodes, transistors, and circuit
modules by Motorola part number only.
2. When ordering crystals, specify carrier frequency, crystal frequency, crystal type number, and
Motorola part number.
3. Part value notations:
p=10
-12
n=10
-9
µ=10
-6
m=10
-3
k=10
3
M=10
6
4. ITEM refers to the component reference designator. SIDE refers to the
location of the component on the board; S1=Side 1, S2=Side 2.

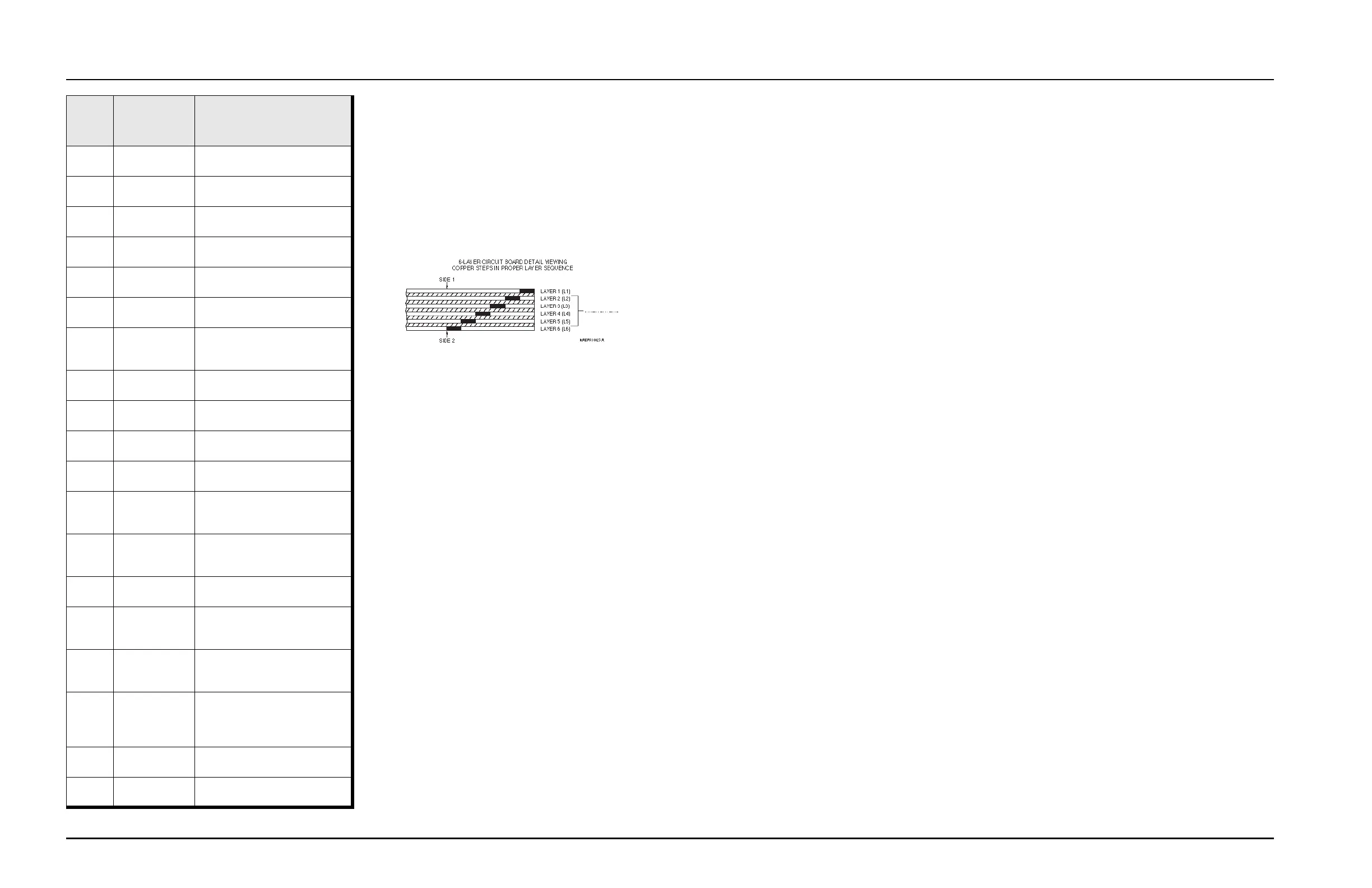

5. The PMLD4303A RF Board uses a 6-layer printed circuit board.
VR508 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR509 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR510 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR511 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR512 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR513 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR650 4813979P12 DIODE ARRAY,TRANSIENT
PROTECTION,SM,SOT-
457,12V, .225W,ZEN,4,PB
VR651 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR652 4813977A43 PB-FREE, NOT COMPLETELY
ENRICHED
VR657 4809788E21 DIODE, ZENER, SOD-323,
SMD, W18 COMPLIANT
VR658 4813977C23 DIODE 13V 'H3'
MMSZ5243BT1
VR659 4813979P10 DIODE ARRAY,TRANSIENT
PROTECTION,SM,
SOT-457,5.6V, .225W,ZEN,4,P
VR662 4813979P10 DIODE ARRAY,TRANSIENT
PROTECTION,SM,SOT-457,
5.6V,.225W,ZEN,4,P
VR663 4813977M18 DIODE,ZEN,SOT-23,9.1V,
.225W, PB
VR678 4866544A01 DIODE ARRAY,ZEN,SR05.TCT,
SM,5V,5, LOW CAPACITANCE
TVS DIO
VR701 4813977M11 DIODE,ZEN,MBZ5232,SM,
SOT-23, 5.6V,10MA,.225W,
ZEN,PB-FREE
Y200 4802245J68
(PMLE4427A)
9375432M01
(PMLE4427B)
OSC, REF 16.8 MHZ 1.5 PPM
REF OSC 16.8 MHZ 1.5 PPM
Y701 4809995L05 XTAL QUARTZ 32.768KHZ
CC4V-T1
Y702 4864005H01 RESONATOR, CRYSTAL
24.576 MHZ
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
INNER LAYERS
