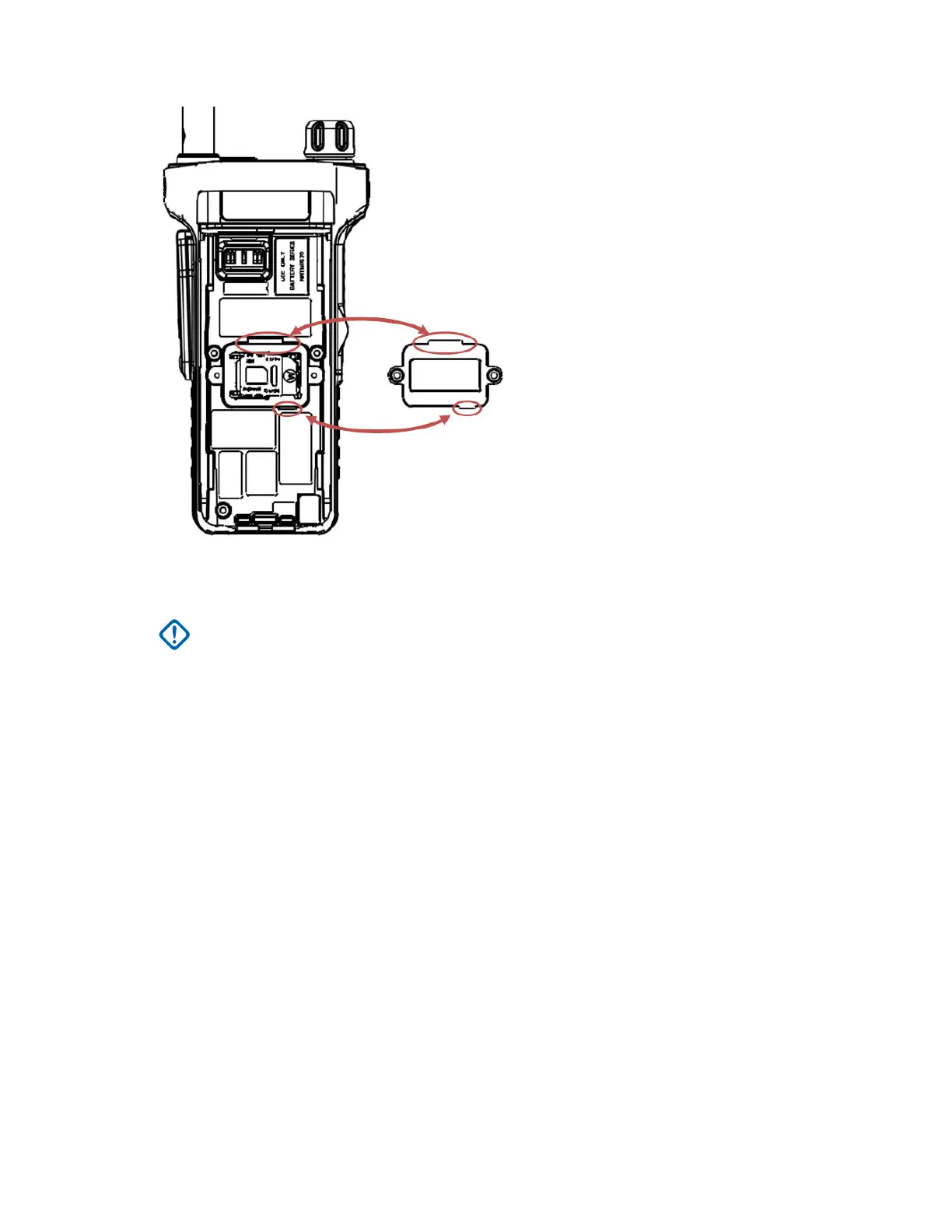

11 Apply pressure on the SIM card door and
use the Torx driver with T-5IP TORX-PLUS bit to
fasten the SIM card door screws to the chassis with torque setting of 1.0±0.1 in-lbs (0.113±0.011
Nm).
IMPORTANT: Ensure that the SIM card door is firmly screwed and the
grey SIM card
door O-ring cannot be seen.
12 Install the battery.
2.2.3
MicroSD Card
The microSD card is supported only by radios equipped with a SIM/microSD card slot. The slot is
located under the battery at the back of the radio. If the SIM/microSD card slot is not available, the
radio uses its internal flash memory to store data.
The radio supports two types of the microSD cards:
•
Micro Secure Digital Card (microSD card) with a capacity of 2 GB.
• Micro Secure Digital High Capacity Card (microSDHC card) with a capacity from 4 GB to 32 GB.
The radio supports the microSD cards that meet the following criteria:
• Capacity of 2, 4, 8 GB
• Industrial grade
• Formatted in FAT32
NO SD card can mean both:
• no physical SD card fitted
• SD card fitted is not accepted/recognized
MN002041A01–AA
Chapter 2: Getting Started
