8-8 MTR3000 Wireline: Functional Theory Of Operation
All Wireline options appear under the “Accessories” menu of the CPS software, as shown in the
screenshot below.

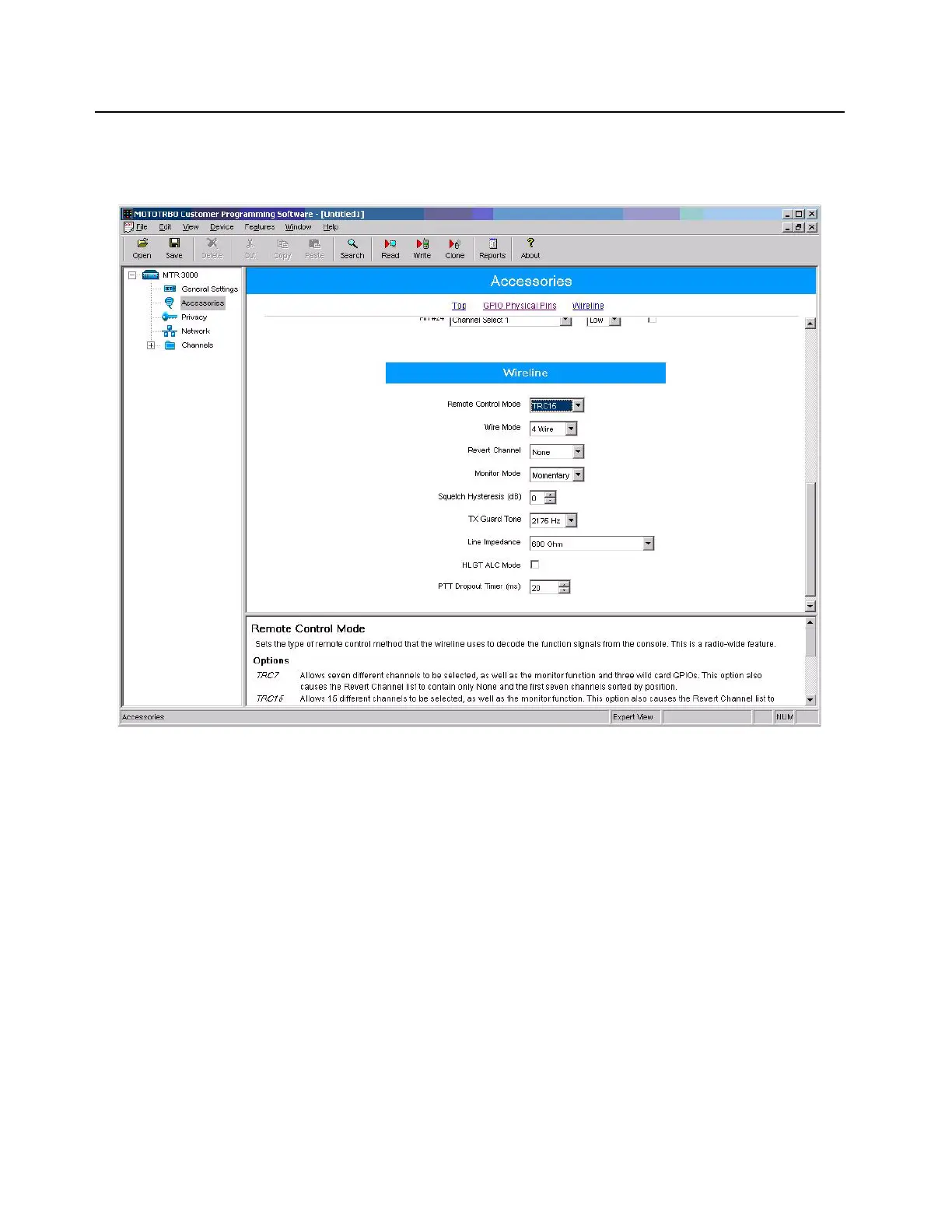

Figure 8-4 CPS configuration for Wireline board
8.3.2.2.1 Choosing a Remote Control Mode
The first step in configuring the Wireline board in CPS is to choose a remote control mode. Select the
appropriate mode from the “Remote Control Mode” option in the CPS Wireline configuration menu.
For Tone Remote Control with 7 channels or less, choose TRC7. For Tone Remote Control with 8 to
15 channels, choose TRC15. For DC Remote Control, choose DC. If PTT is generated by a device
other than the Wireline board (commonly known as Local PTT), choose ‘None’.
With a Remote Control Mode chosen, the “GPIO Physical Pins” must be configured to match. Locate
the “GPIO Physical Pins” settings in CPS on the “Accessories” menu. Table 8-4, Table 8-5, and
Table 8-6 list the “GPIO Physical Pins” settings for each Remote Control Mode.
