MTR3000 Radio Frequency Distribution System (RFDS) Equipment: Field Tuning Procedures 9-29
9.5.2.1.2 Setting Up for Tuning Duplexer
Perform the preliminary tasks shown in Figure 9-22 to prepare the duplexer module for tuning.

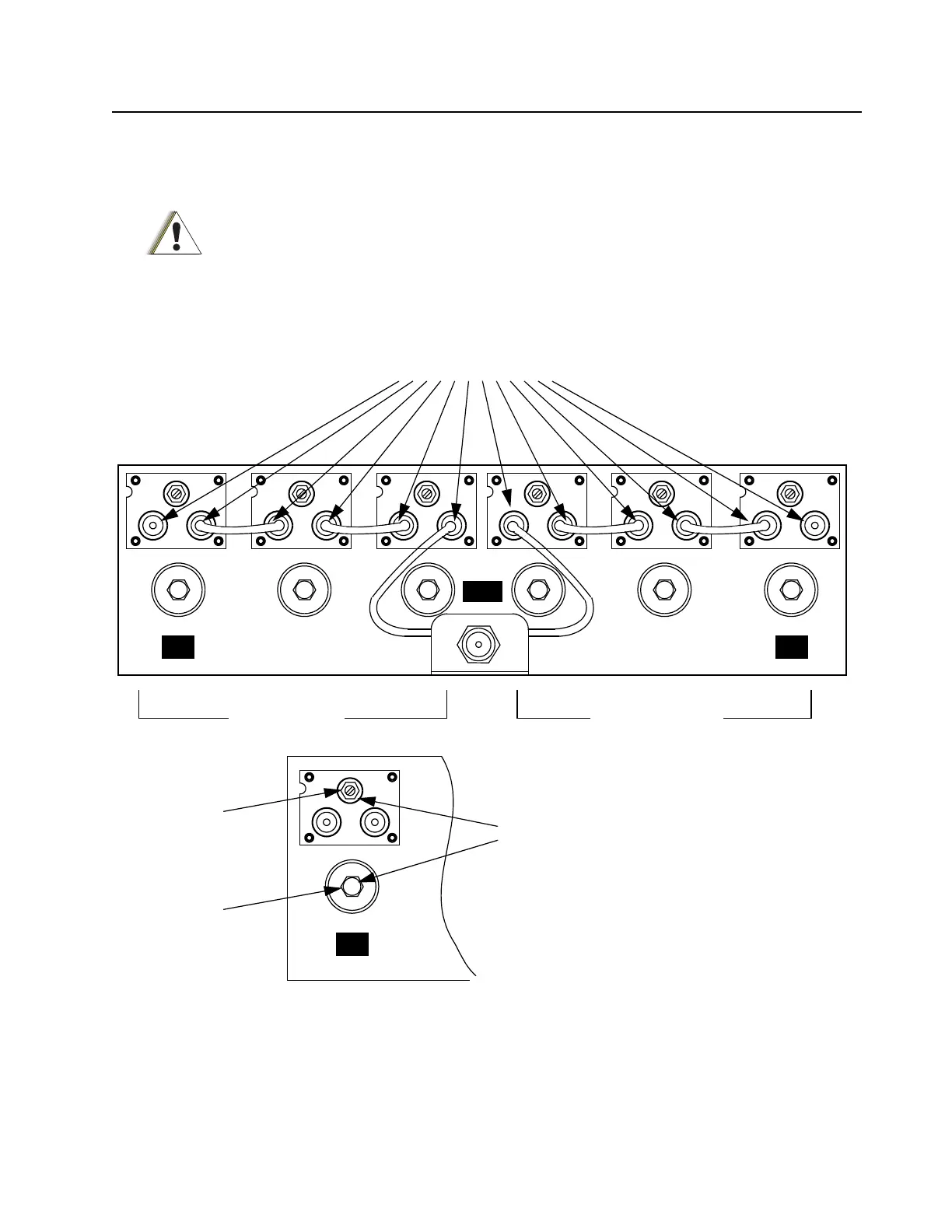

Figure 9-22 Preliminary Tasks Prior to Tuning Duplexer
1. Disconnect twelve N-type connectors and
remove six cables from cavities.
2. For each of the 6 cavities, use
open-end wrench to loosen
locknuts (2 per cavity).
Low-Pass High -
Notch Cavities
High-Pass Low-
Notch Cavities
HI
ANT
LO
LO
Notching
Adjustment
Screw
Pass
Adjustment
Screw
C a u t i o n
Each Duplexer cable is unique and must be returned to the original position when removed. Use tape
to label each end of each cable to ensure it is correctly replaced.
