14-10 MTR3000 Maintenance and Disassembly/Reassembly: Disassembly and Reassembly – Detailed

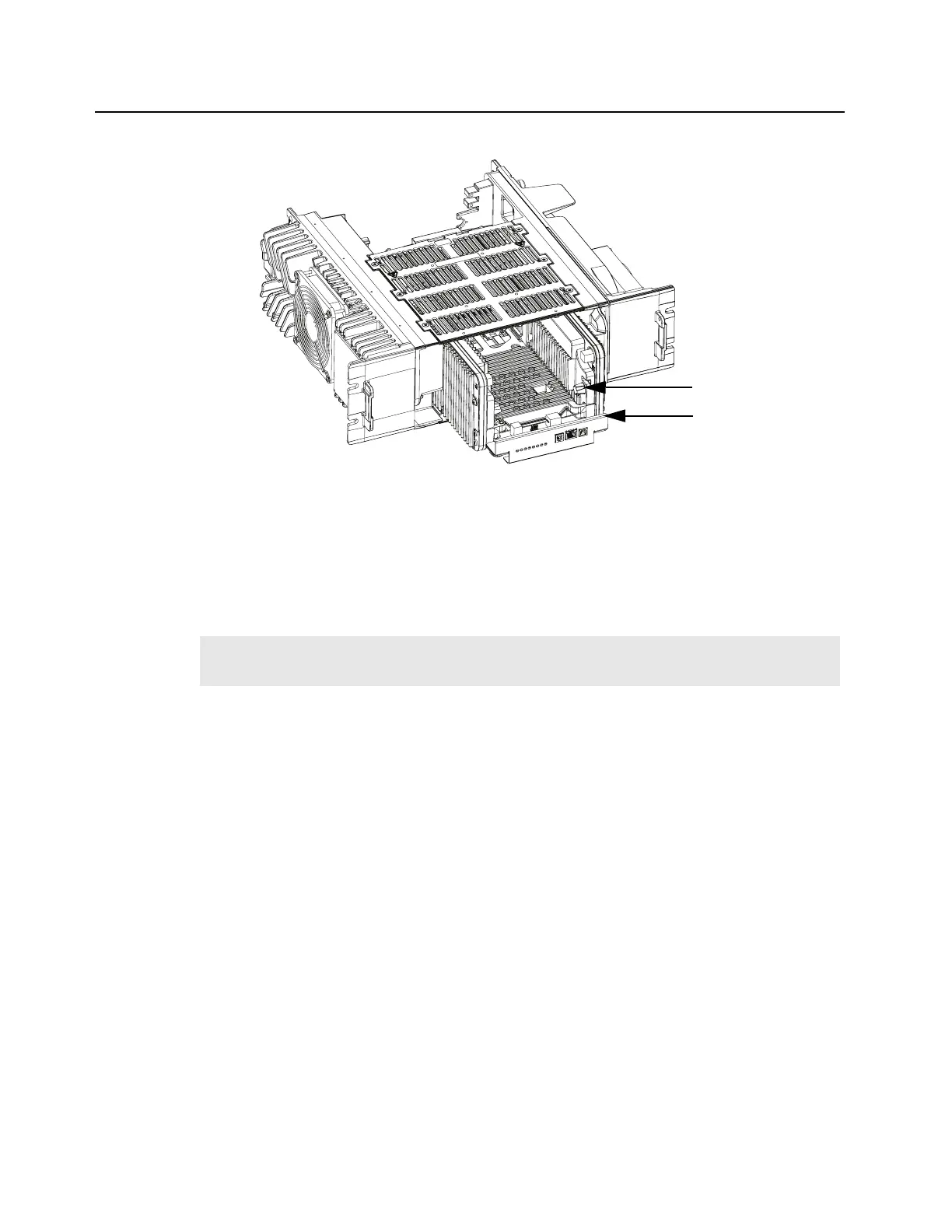

Figure 14-7 Sliding Station Control transceiver assembly out
5. Remove the four screws securing the Exciter Module to the transceiver assembly and
disconnect the Exciter Module from the Station Control Module (SCM).
6. Ensure that the correct Exciter Module is being installed.
7. Install the replacement Exciter Module by plugging the module into the connector on the
SCM, replacing four screws, and sliding the transceiver assembly back into the base station/
repeater (along the guide rails) to mate with the connector on the backplane interface board.
8. Reconnect all the cables.
9. Fasten the transceiver assembly into unit using two screws.
10. Restore power to the base station/repeater.
Note
Do not slam the base station/repeater control transceiver assembly against the backplane
interface board or push any harder than necessary to seat the connector.
Transceiver assembly
Cast knob
