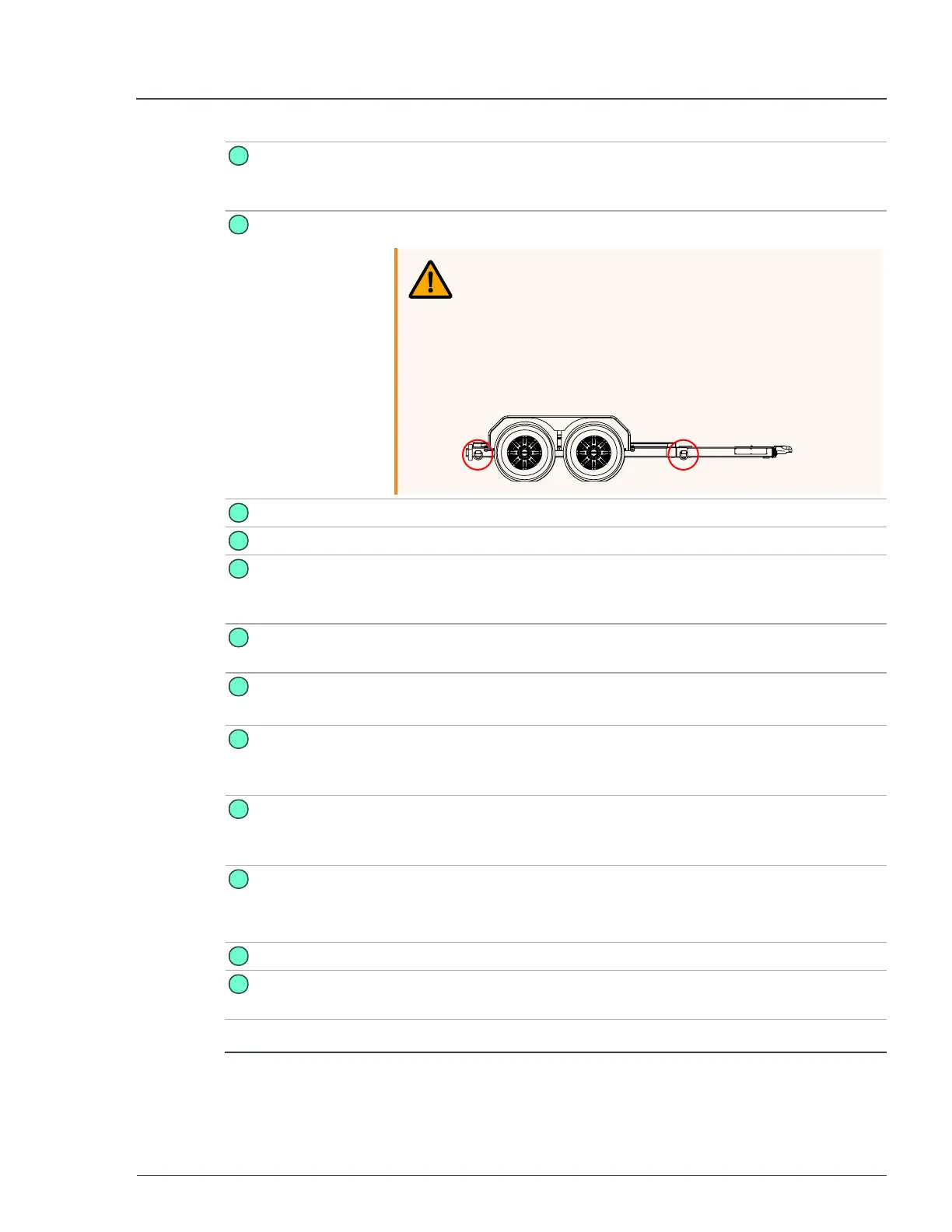

MANUAL-75-v2.0 27 of 82
5
Emergency
brake cable
Must be attached to the towing vehicle when towing.
Used to engage the trailer brakes if the trailer hitch becomes
detached during transit.
6
Tie-down D-
rings
Four locations. Used to secure the trailer on a truck or trailer.
WARNING
Risk of serious injury or death!
Do not lift the unit using the trailer D-rings located on the
side of trailer.
These D-rings are only to be used for securing the
trailer, with the MPU fitted, when it is transported using
a flat-bed or goose-neck trailer.
7
Tires Four locations. Uses tire type 235/80/16.
8
GPS antenna Used for unit location and data transmission.
9
Air vents
(each side of
unit)
Used to provide ventilation for the unit.
10
Emergency
stop
Used to stop all output connections.
Located on the side of the MPU.
11
Main control
panel
Used to access the main controls for starting and using the unit.
► For more information, see
Main control panel
on page 28
12
Outlet
connector
panel
Used to access the outlet connections.
► For more information, see
Outlet panel
on page 29
13
Cam-lock
connector
panel
Used to access the cam-lock connections.
► For more information, see
Cam-lock connections
on page 30
14
Twist-lock
connector
panel
Used to access the twist-lock connections.
► For more information, see
Twist-lock connections
on page 31
15
Trailer Used to transport and position the MPU.
16
Charging
socket
Used to charge the unit.
Figure 8 - Main parts
2 Hardware description MP75-600 - User Manual
