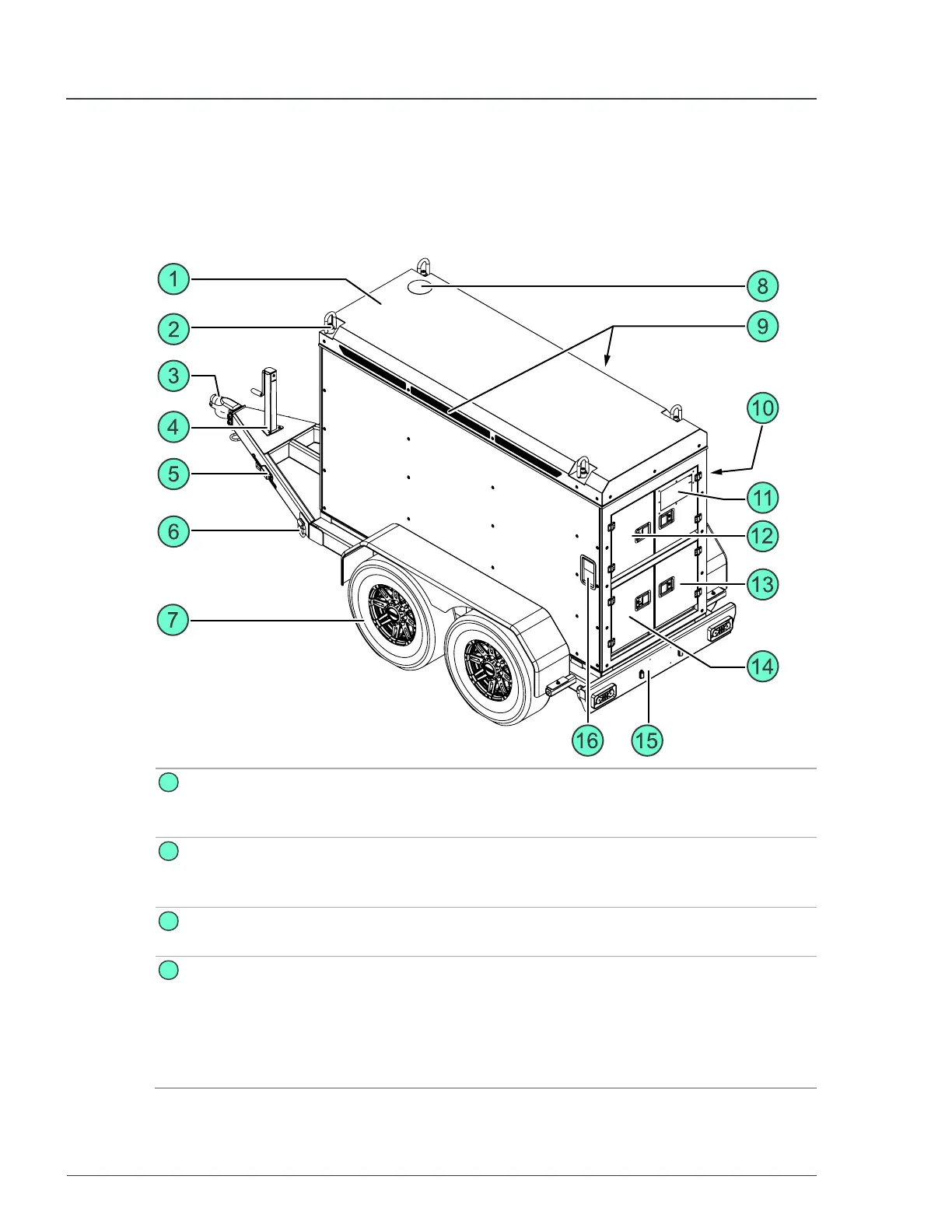

2.3 Main external parts
Before operating the unit, you should be familiar with the location and names of all
parts of the unit. This will help you understand the operating procedures and assist
with troubleshooting, if required.
1
Mobile power
unit (MPU)
The battery, electrical connections, and controls systems.
2
Lifting eyelet
socket
(4locations)
Used to attach lifting gear when lifting the unit.
3
Trailer lunette
ring
Used to attach to a towing vehicle.
4
Tongue jack The tongue jack must only be used when the unit is stationary and
not attached to the towing vehicle.
Used to raise the trailer-tongue when attaching the trailer to the
towing vehicle.
The supplemental jack stand must be used when transporting the
unit on a flat-bed or goose-neck trailer.
