NEMA L5-30
outlet
Used for connecting industrial or commercial-grade devices
and connectors up to 120 V heavy-duty power.
• 30A outlet
9
NEMA L5-30
breaker
Used to isolate power to the Nema L5-30 outlet.
Figure 10 - Outlet panel connections

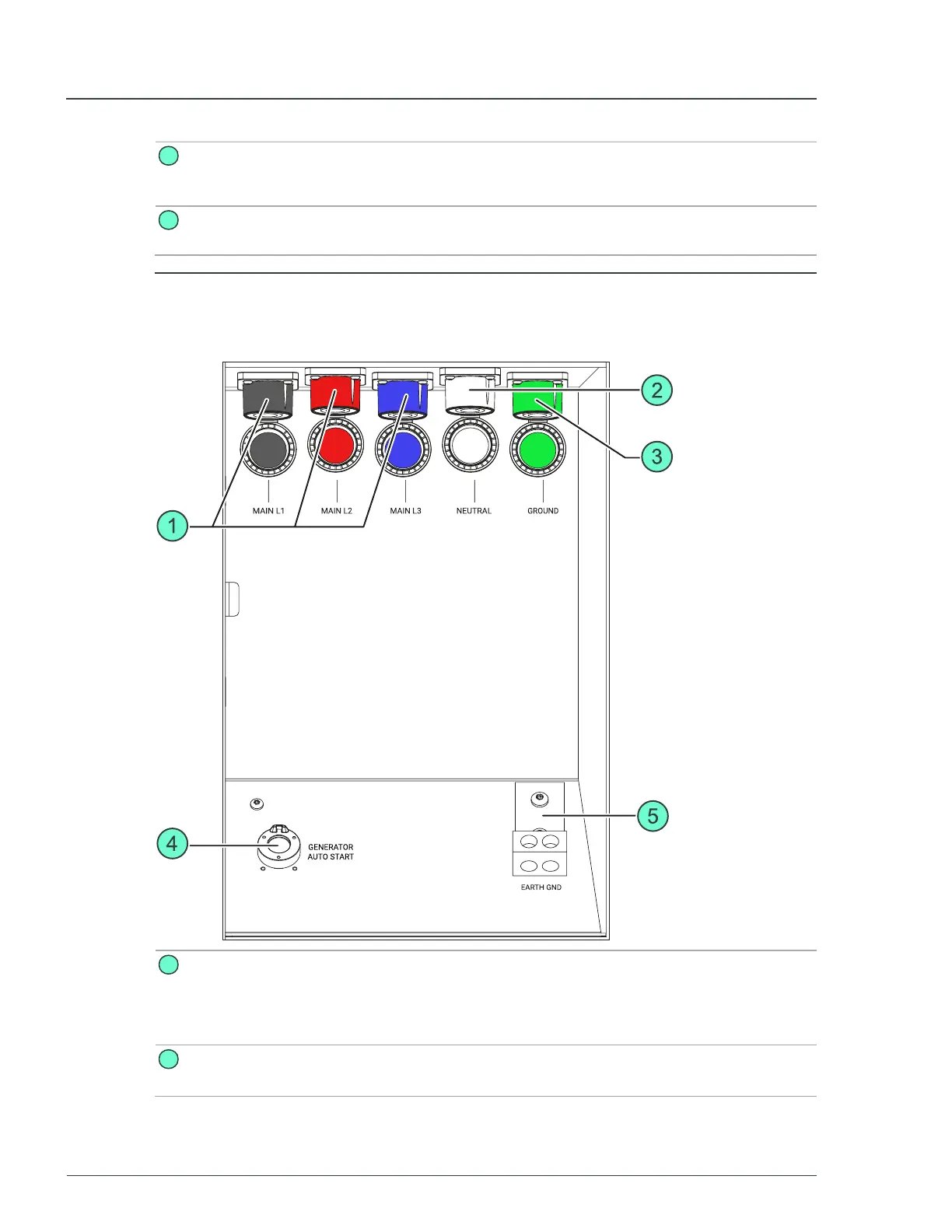

2.3.3 Cam-lock connections
1
Main cam-lock
connectors
Provide 3-phase power.
l
Black
l
Red
l
Blue
2
Neutral connector Neutral for 3-phase power.
l
White
