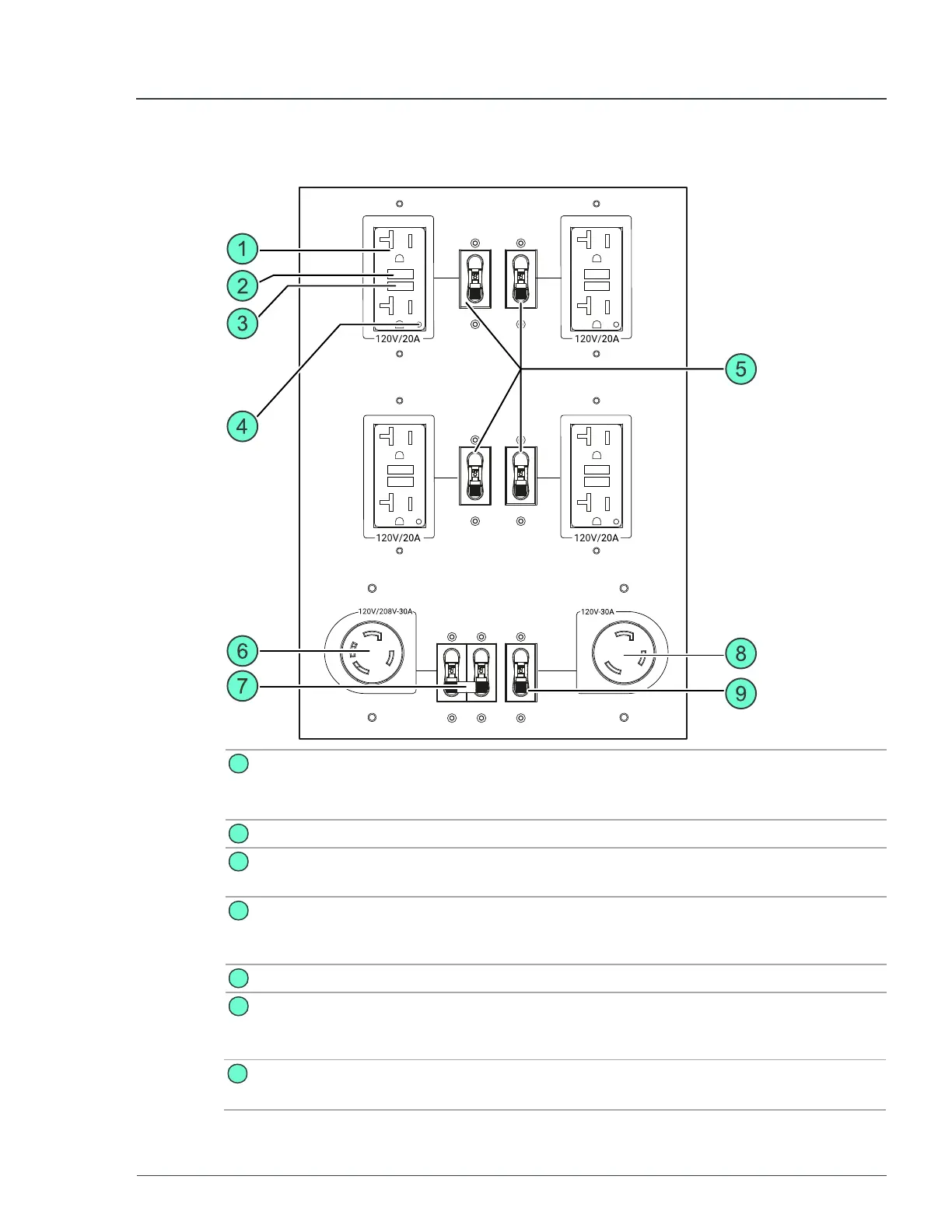

2.3.2 Outlet panel
1
NEMA 5-20R
outlet (8
locations)
Weather-resistant GFCI outlet used to provide standard
120V/20A outlet with downstream protection.
• 20A outlet
2
Reset button
Used to reset the circuit and make the outlet active again.
3
Test button
Used to test the outlets' GFCI functionality. DO NOT use an
independent GFCI testing device on these outlets.
4
GFCI outlet status
Red - device needs attention
Green - power on and working
Off - no power as the GFCI has tripped
5
NEMA 5-20R breaker
Used to provide power isolation for the NEMA 5-20R outlets.
6
NEMA L14-30
outlet
Used for connecting industrial and commercial-grade devices
and connectors up to 208 V heavy-duty power.
• 30A outlet
7
NEMA L14-30
breaker
Used to isolate power to the Nema L14-30 outlet.
