48 of 82 MANUAL-75-v2.0

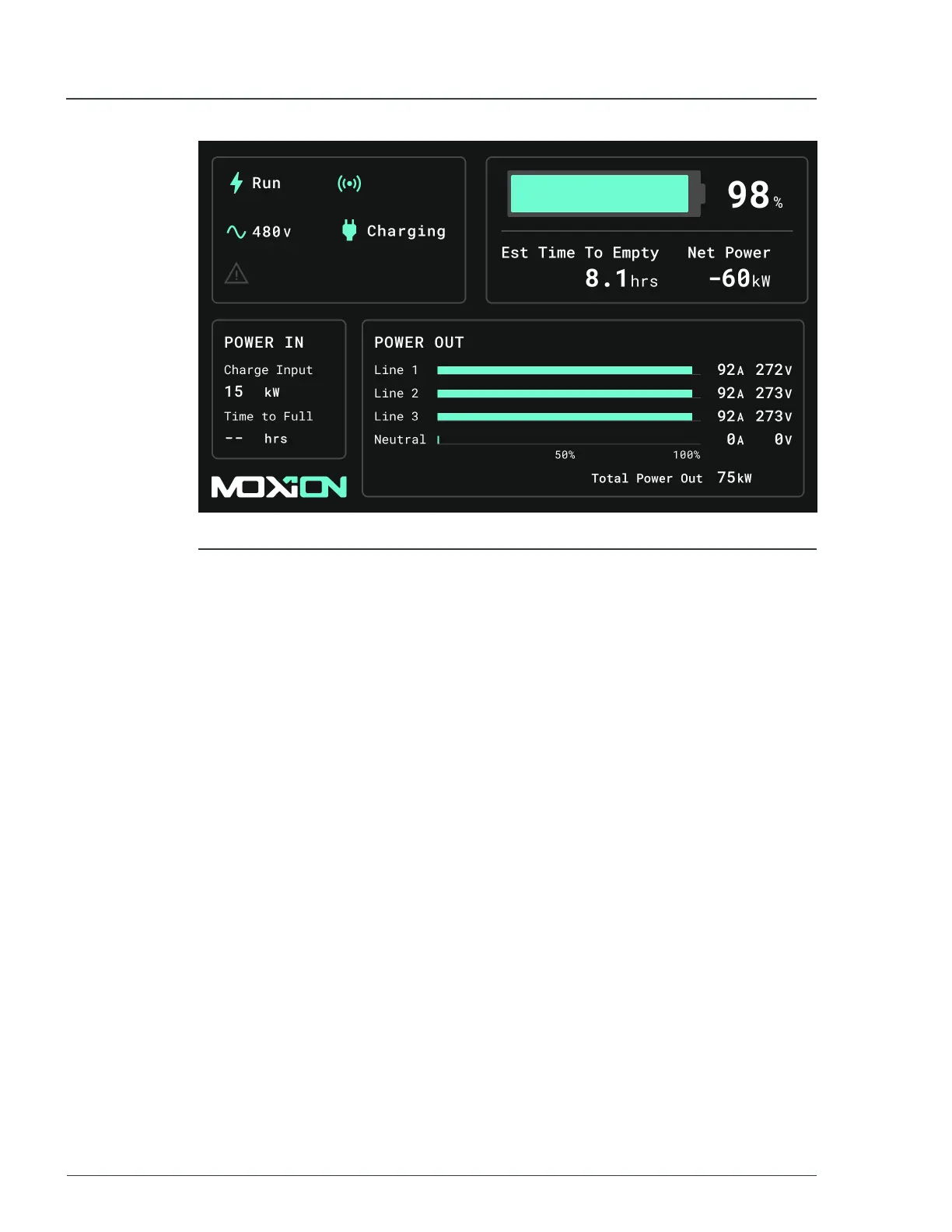

Figure 22 - Control display showing charging in progress
6. Ensure that the charge is stopped on the EVSE (Electrical Vehicle Supply
Equipment) charger before disconnecting the charger from the charge port.
7. After you have charged the unit, disconnect the charger by pressing and holding
the release button on your charging connector.
a. Wait until the interlock pin is released and then remove the charging
connector.
b. You will feel the interlock pin release when the release button depresses.
4.2 Attaching the hitch
The unit can be towed using a vehicle fitted with the correct pintle hitch and lunette
ring connections.
Before attaching the pintle hitch, check the following:
l
The towing vehicle has direct and straight access to the unit so that it can
reverse straight onto the unit hitch.
l
The tongue jack is extended so that the lunette ring is slightly higher than the
pintle hitch on the towing vehicle. You may not be able to adjust the height of the
tongue jack until the pintle hitch is near the trailer.
l
Have a person guide the towing vehicle driver when they are reversing towards
the trailer.
l
Make sure the pintle hitch and lunette ring are lightly greased. This prevents
noise during towing and extends the life of towing parts.
MP75-600 - U
ser Manual 4 Operations
