MOXION MP75-600 - Twist-Lock Connections; Charging Port and Rates

MANUAL-75-v2.0 31 of 82
3
Ground connector Ground for 3-phase power.
l
Green
4
Remote start jack Used to send signal to start external power generation
unit.
Used to remote start generator for the hybrid mode.
5
Ground block Used to connect earth ground to the unit.
Figure 11 - Cam-lock connections
2.3.4 Twist-lock connections
1
Twist-lock
connectors
Three connections.
Used for connecting industrial and commercial-grade devices and
connectors up to 240V/50A heavy-duty power.

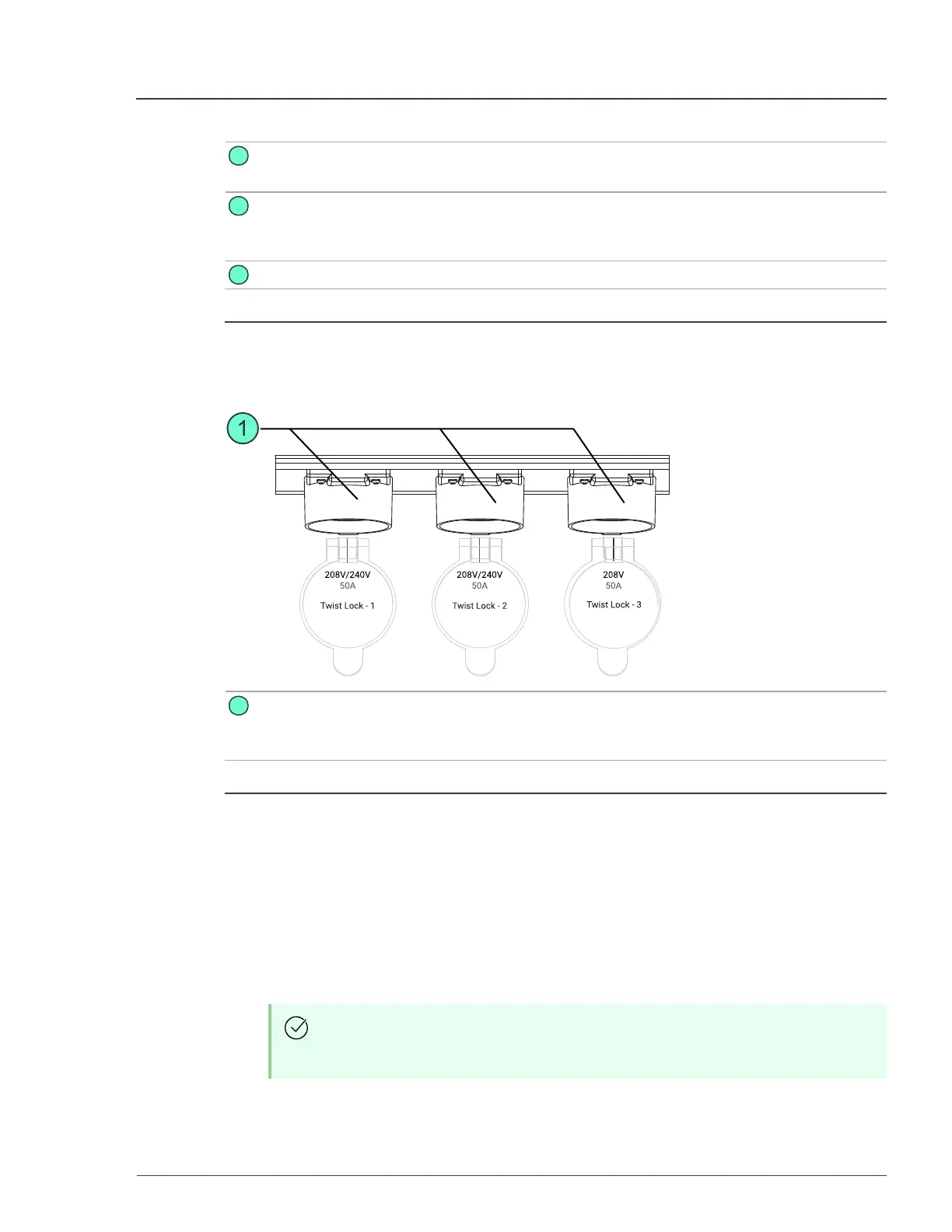

Figure 12 - Twist-lock connections
2.3.5 Charging connection
The J1772 CCS Type 1 charging port is located on the side of the unit.
The following charge rates are supported:
l
Level 2 AC charging up to 19.2kW
l
Level 3 DC Fast Charging (DCFC) up to 40kW
Tip
DC charging is possible only when the system is in STANDBY mode.
2 Hardware description MP75-600 - User Manual
Tip
DC charging is possible only when the system is in STANDBY mode.
