MANUAL-75-v2.0 65 of 82

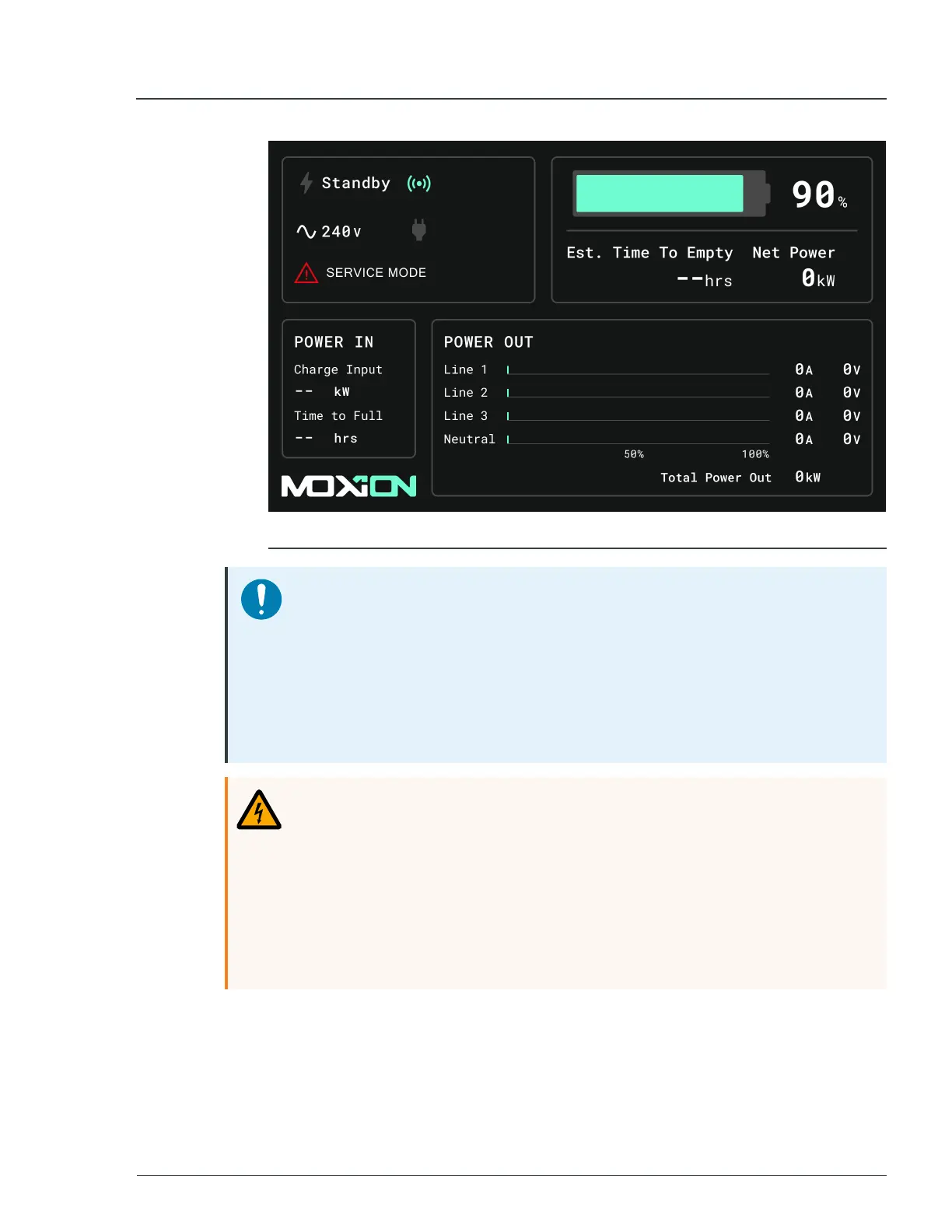

Figure 26 - Service mode display
Notice
After
SERVICE MODE
is activated, immediately contact Moxion Power.
The system must not remain in
SERVICE MODE
for a prolonged period of
time (no more than 4 hours), otherwise the unit could be damaged and the
long-term functionality of the system could be compromised.
When the system is in
SERVICE MODE
, the configuration of the high voltage
isolation persists through the unit's power cycle.
WARNING
Risk of electrical shock!
You must follow LOTO (lock out, tag out) procedures before accessing the
high voltage systems.
1. Turn the unit OFF.
2. Engage the e-stop.
3. Lock all the rear doors.
5 Service and maintenance MP75-600 - User Manual
