Bolt X Quick Start Guide
8
Mounting the Yaskawa arm
1. Remove all packaging from the Bolt X arm and the pedestal. If not
already added, attach the two mounting plates on the arm using 4 x
M12 screws on each side. Ensure that each plate is mounted on the
correct side.

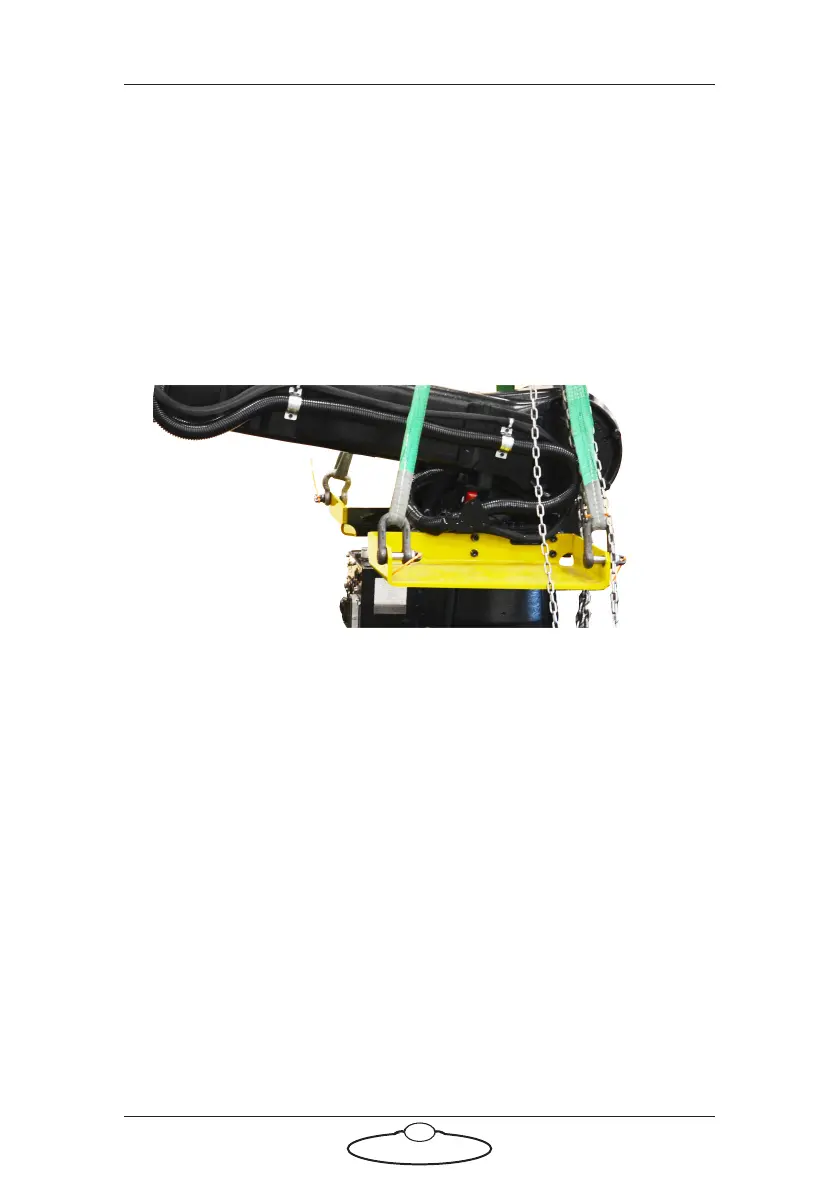

2. Securely attach shackles on each of the four corners of the lifting
plates.
3. Use the shackles to tie a lifting sling around the arm and insert the
hook from the gantry hoist on to it.
4. Wheel the Bolt X base under the gantry hoist.
