Bolt X Quick Start Guide
9

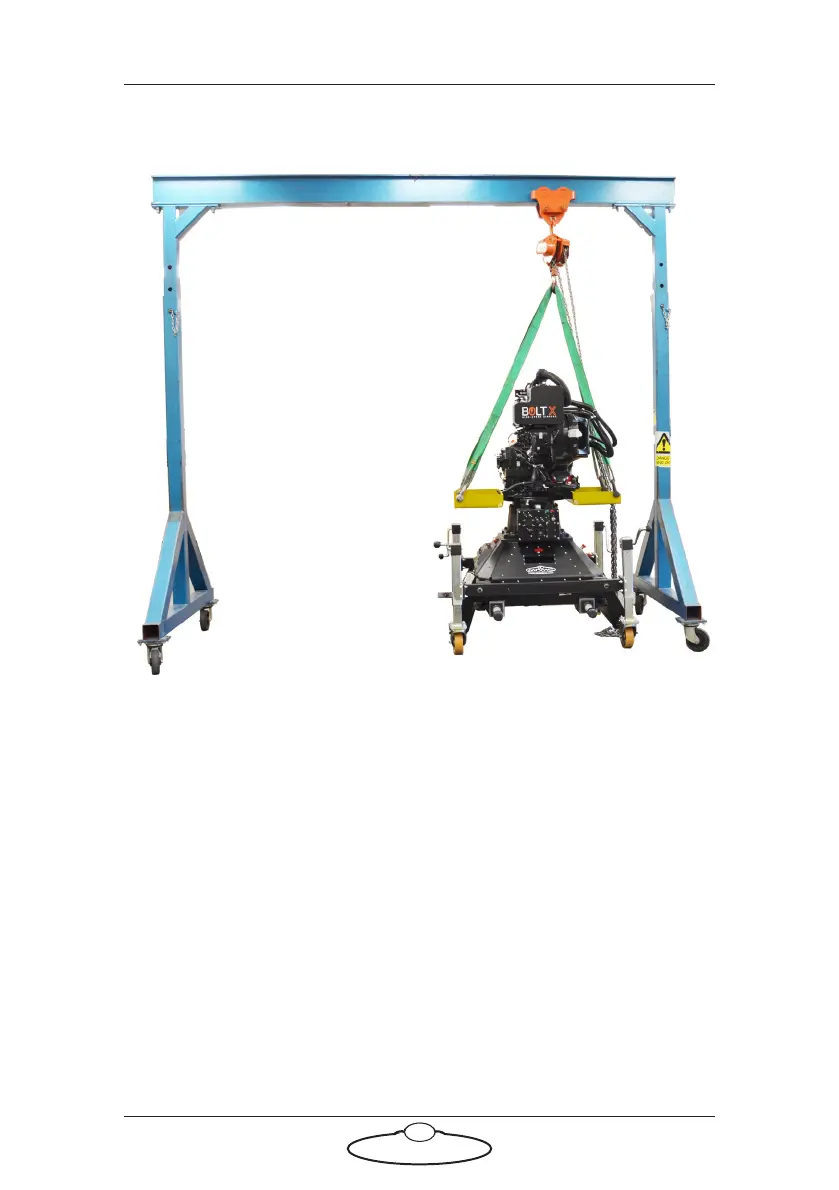

5. Use the gantry hoist to gently lift the arm and lower it in position on
the Bolt X base aligning the screw slots.
6. Tighten the 8xM20 screws to secure the arm on the Bolt X base.
7. Remove the gantry hook and the straps from the arm. Also, remove
the yellow lifting plates from the arm.
Mounting the weight wings
If you want to use Bolt X in a stationary position that is temporary (or if
you don’t want to damage the floor by installing anchors in it), you must
weigh down the Bolt X base to keep it stable during high-speed moves. To
do this you install wings on the base, which lie flat on the floor, and then
put weights on the wings to securely hold down the rig.
1. Use a pallet truck for Bolt X On Pedestal to lift Bolt high enough to
go over the wings (about 10 cm).
2. Lay one of the wings beside the Bolt X base and push the edge of the
wing over the edge of Bolt X, lining up the four holes.
