Bolt X Quick Start Guide
79

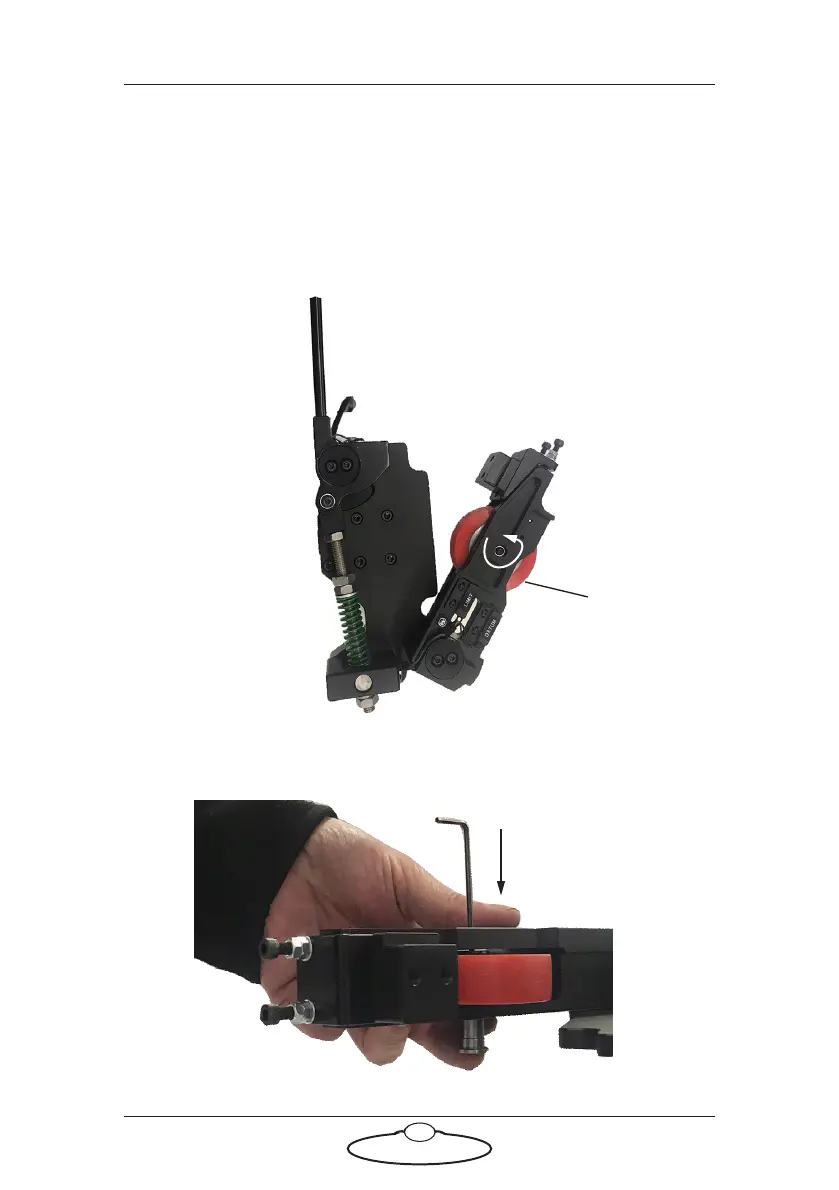

Replacing the Pinch Wheel
The worn out pinch wheel can be replaced in the pinch wheel assembly
using the following procedure:
1. Unscrew the small screw on the pinch wheel on the underside of the
pinch wheel assembly. The pinch wheel is not completely detached
yet.
2. Using the same allen key push in the screw cavity to release the pin
securing the pinch wheel.
Pinch
wheel
Pinch wheel Assembly
