Bolt X Quick Start Guide
80

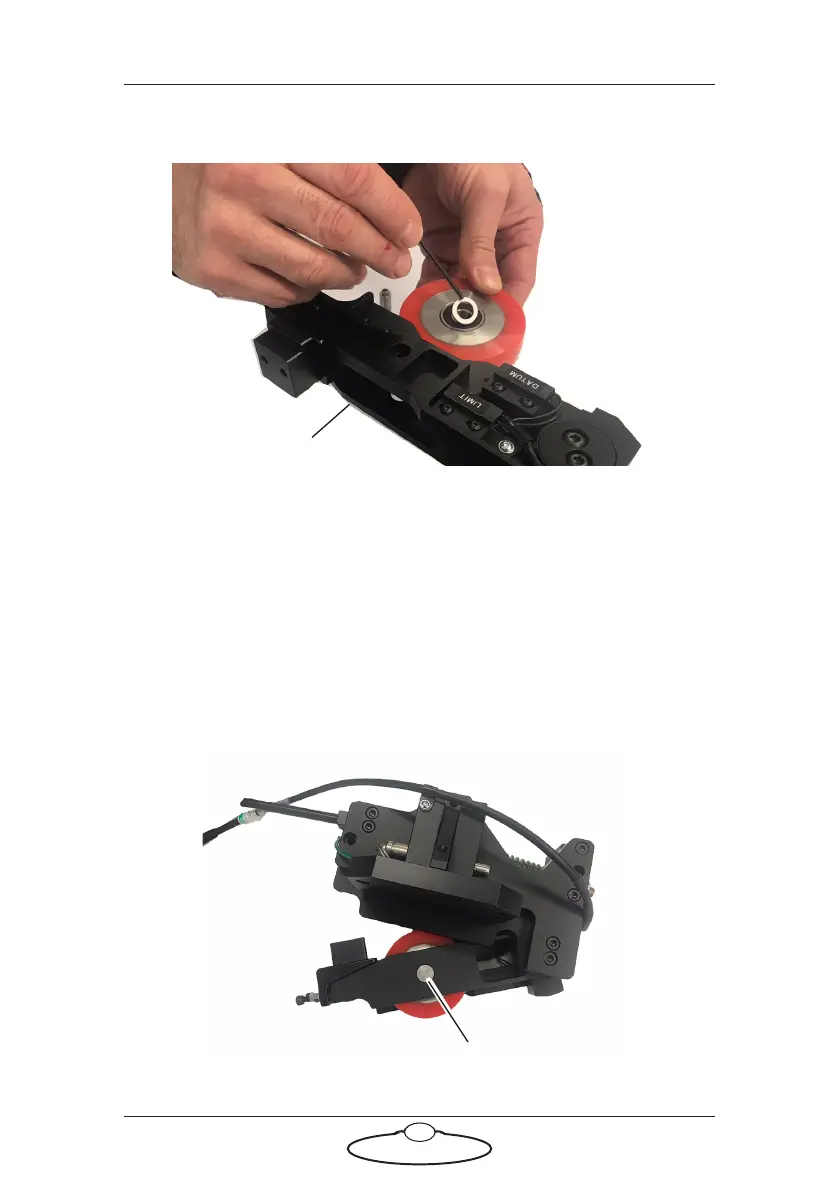

3. Notice a washer above the pinch wheel; keep it aside. Discard the
worn out pinch wheel.
4. Replace the washer on the new pinch wheel carefully and inserting it
lined with the screw cavities in the centre shaft of the pinch wheel
assembly. Ensure that the washer is inserted towards the underside
of the shaft and not on the top.
5. When the pinch wheel is centred on the cavities insert the pin.
(Refer to step 2 for alignment and pin position). Push the pin
enough so it is flush with shaft and is not protruding.
6. Replace the screw and washer to secure the pinch wheel to the
assembly.
Underside of the
Pinchwheel centre shaft
pinch wheel pin levelled
with centre shaft
