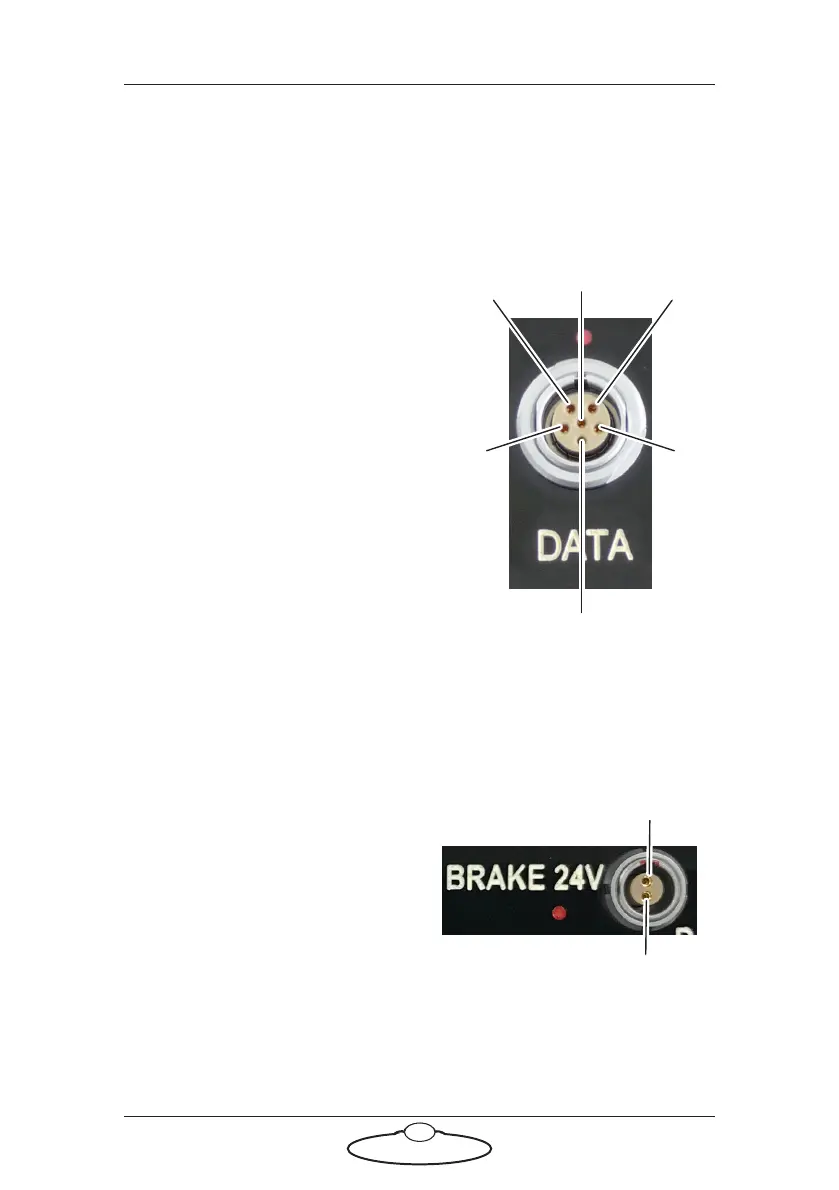

Data In connector
This is a DataLink In connector for connection to a controller using a
DataLink connection. DataLink In (Up Link) connector for connection to
a DataLink device higher up in the DataLink daisy-chain. For usage see.
page 70.
1. Watchdog–
2. Link1Out–
3. Link1Out+
4. Link1In–
5. Link1In+
6. Watchdog+
Brake 24V connector
This is a Lemo Size 0 2-way connector and is sourced from external PSU.
1. GND
2. +24V
