Bolt X Quick Start Guide

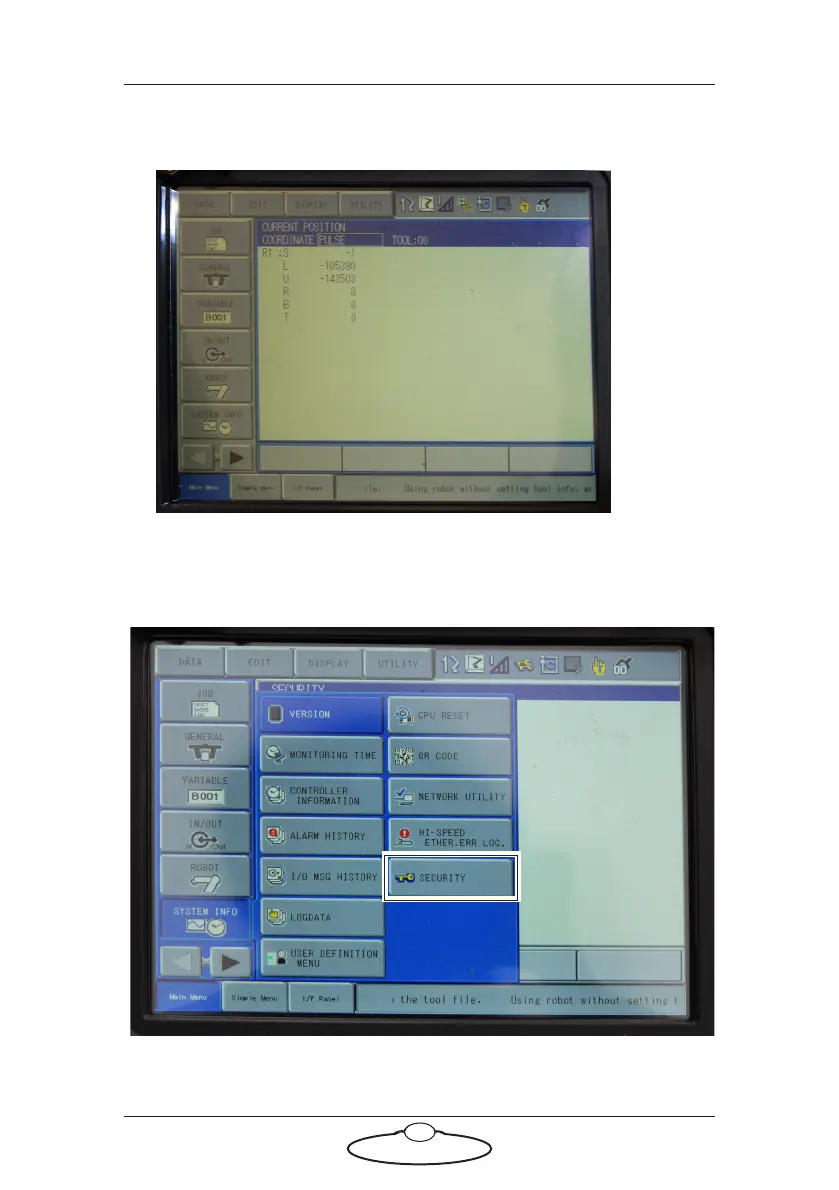

7. Select MAIN MENU → ROBOT → CURRENT POSITION. The

axis is changed to 0.

Changing User Profile

1. Select MAIN MENU → SYSTEM INFO → SECURITY.
