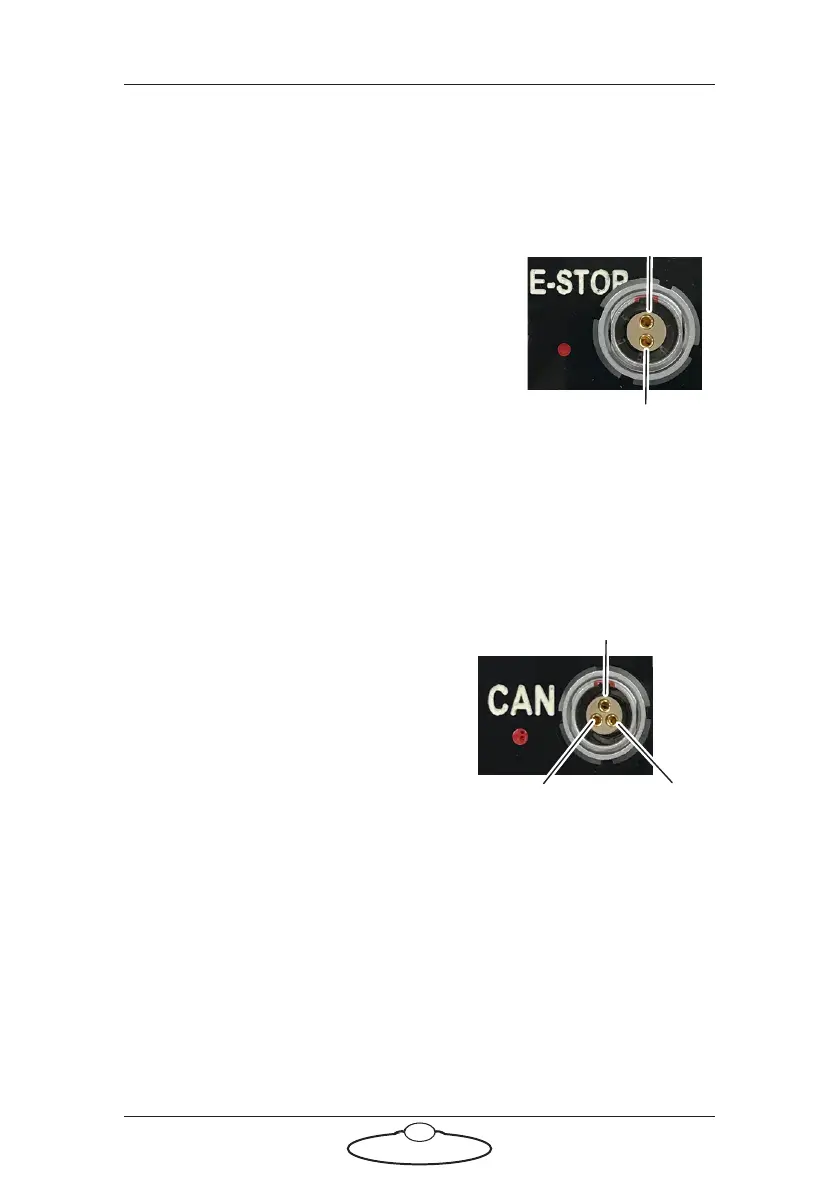

Brake 24V connector
This is a Lemo Size 1 2-way connector; external circuitry should keep the
pins closed.
1. E-STOP-
2. E-STOP+
CAN connector
This is a Lemo Size 0 3-way connector; is used to communicate with
external CAN capable motor drives.
1. CAN Hi
2. CAN Lo
3. GND
1
2
1
2
3
