Bolt X arm connector pinout information

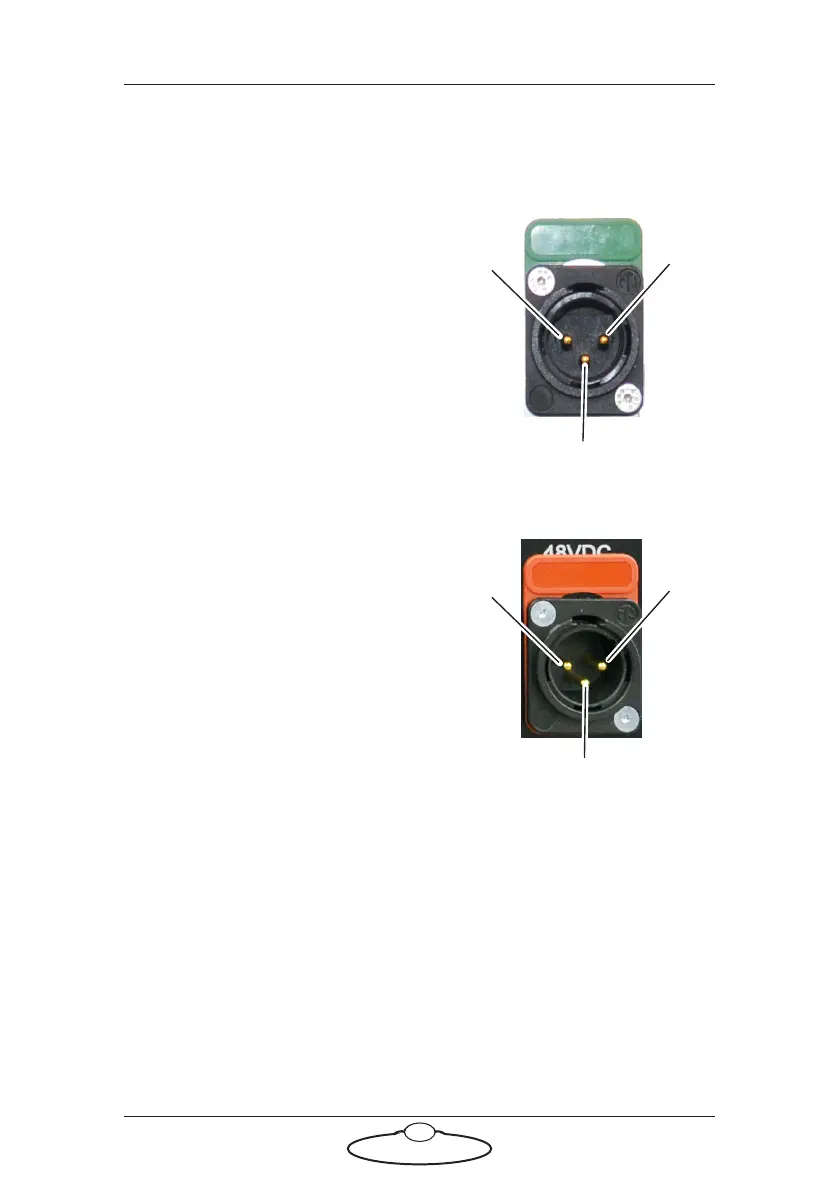

12VDC connector
This type of connector is used to power
the camera through the robot arm.
1. GND
2. +12-24V
3. Not used
48VDC connector
This type of connector is used to power
the camera through the robot arm.
1. GND
2. Not used
3. +48V
1
3
2
1
3
2
