Bolt X Quick Start Guide
55
3. You might need to flash a torch in the cavity for a clear view. Once
in the clamp is in view, move the track motor slowly from Flair until
the screw is clearly in view.
4. Using an allen key, tighten the screw, ensuring not tightening
excessively to prevent breaking it.
5. Replace the screw in the cavity and close the hatch.
Pinchwheel Setting
1. Pinch wheel mesh pressure setting:
The pinch wheel has an angled block, which is adjustable, which in turn
raises or lowers the engagement block.
1.1 Firstly loosen the two cap head bolts that secure the block
through the angled adjustment block:

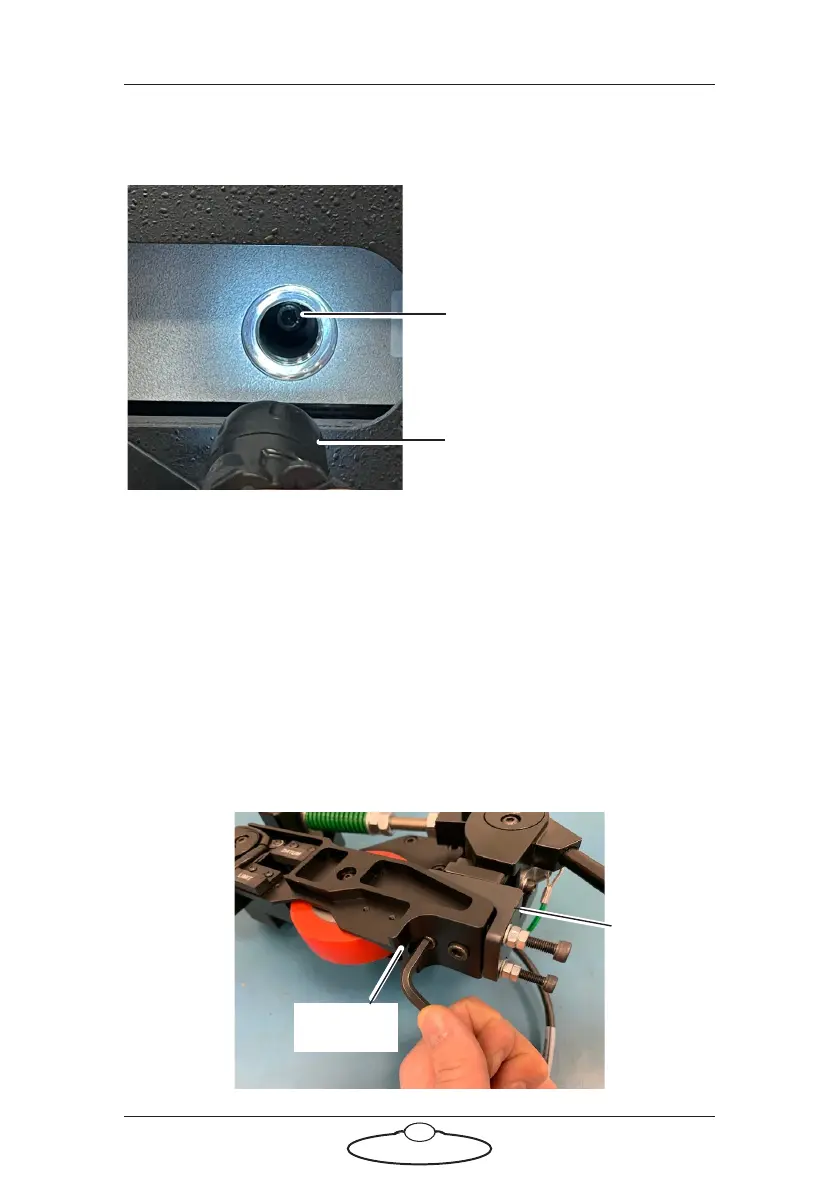

Torch
Coupling screw
Angled
block
Engagement
block
