Appendix A
Optional Ultima Duct Mount Kit
General
The Ultima Duct Mount Kit (FIGURE A-1) provides convenient
Ultima Gas Monitor sampling of gas within an air duct.
• This Kit enables duct gas sampling even when flow rate within
the duct is at a high velocity.
• The user can calibrate the sensor via a calibration port without
disassembling or removing the sensor from the duct.
• The sensor and the Kit are sealed to the duct to prevent gas
within the duct from escaping.
NOTE: The Ultima Duct Mount Kit will not fit the Ultima Gas
Monitor with internal relays.
• If relays are necessary, the Ultima Gas Monitor remote sensor
must be used.
• All Ultima remote sensors fit into the remote sensor model of
the Ultima Duct Mount Kit.

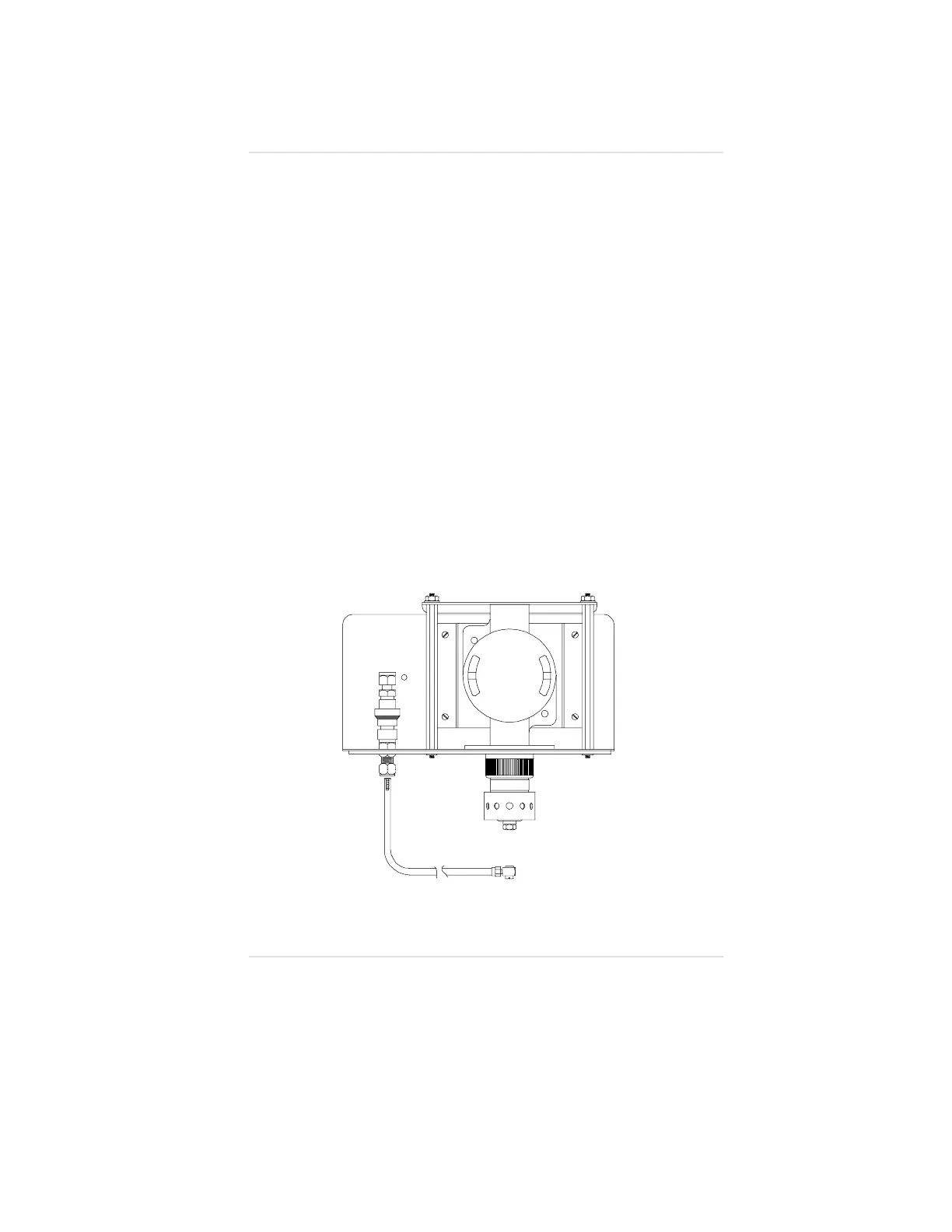

Figure A-1.
Ultima Duct Mount Kit
Appendix A, Optional Ultima Duct Mount Kit
A-1
