• On rounded ducts, additional gasketing may be
required for proper sealing.
3. Locate and identify all of the component parts that are in the
Duct Mount Kit (TABLE A-1).
Table A-1. Single module Duct Mount Kit Parts List
DESCRIPTION
PART
NUMBER
FIGURE
Ultima Gas Monitor Mounting bracket
814634 A-3
Quantity of 4 of #10-32 X 5/16 screw
634054
Quantity of 4 of #10 lock washers
627852
Quantity of 2 of Ultima Gas Monitor spacers
710768 A-4
Ultima Gas Monitor clamp
710771 A-5
Ultima Gas Monitor enclosure gasket
710770 A-6
Ultima Gas Monitor plate
710769 A-7
Ultima Gas Monitor Duct Mount Kit base plate
814633 A-8
Quantity of 2 of 1/4 inch hex nut
631357
Quantity of 2 of 1/4 inch lock washers
655245
4. Locate the Ultima Gas Monitor to be installed in the duct.
5. Unscrew the Ultima Gas Monitor cover and set aside.
"!
WARNING
Before removing the cover of an explosion-proof Ultima Gas
Monitor, verify that the surrounding area does not contain
a flammable mixture of combustible gas and air, since a
source of ignition is exposed; otherwise, an explosion may
occur if a metal object contacts the circuitry and produces
sparks.

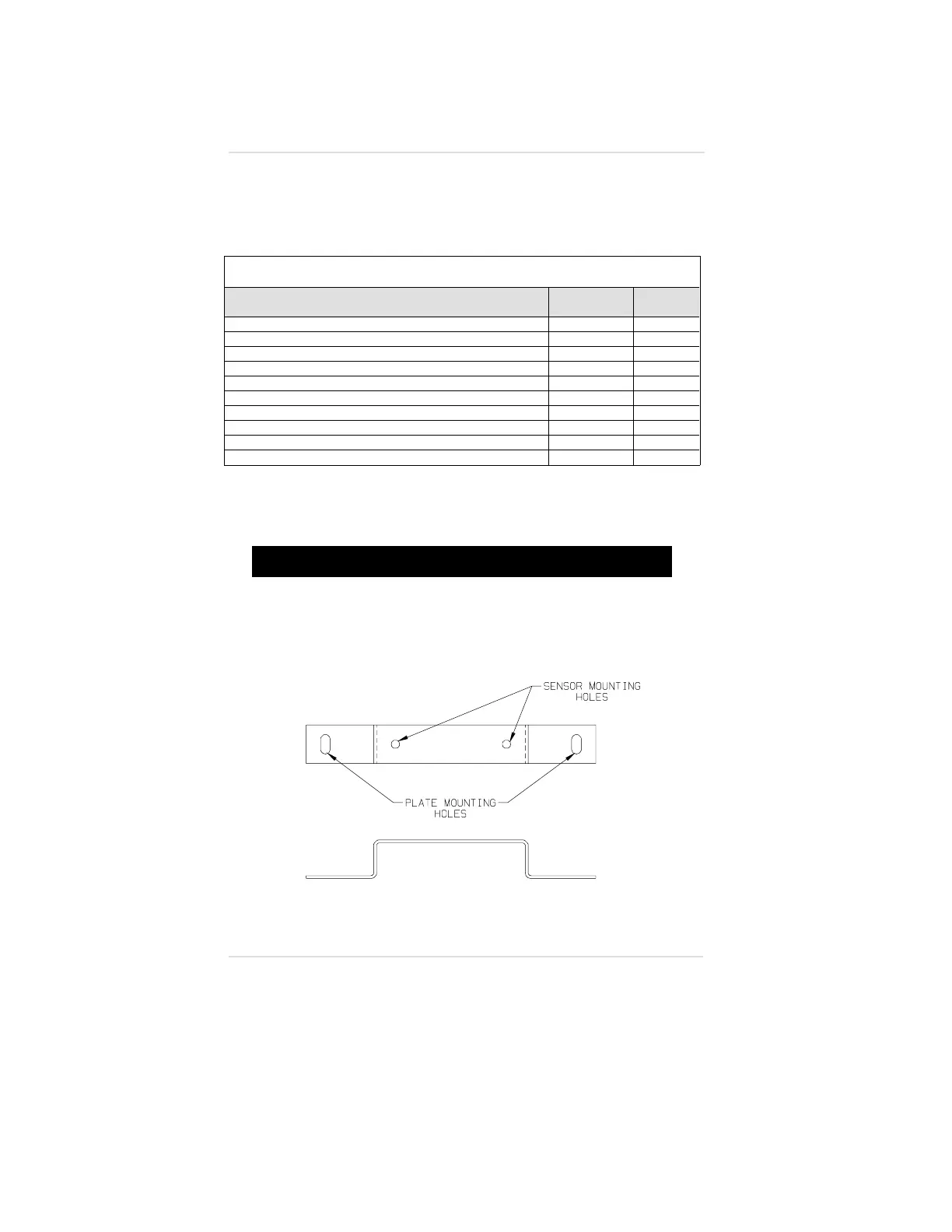

Figure A-3.
Ultima Gas Monitor Mounting Bracket
Appendix A, Optional Ultima Duct Mount Kit
A-4
