Hooklift Multilift XR21S59 CHU
User Manual
2
3
4
5
B
C
A
>>>

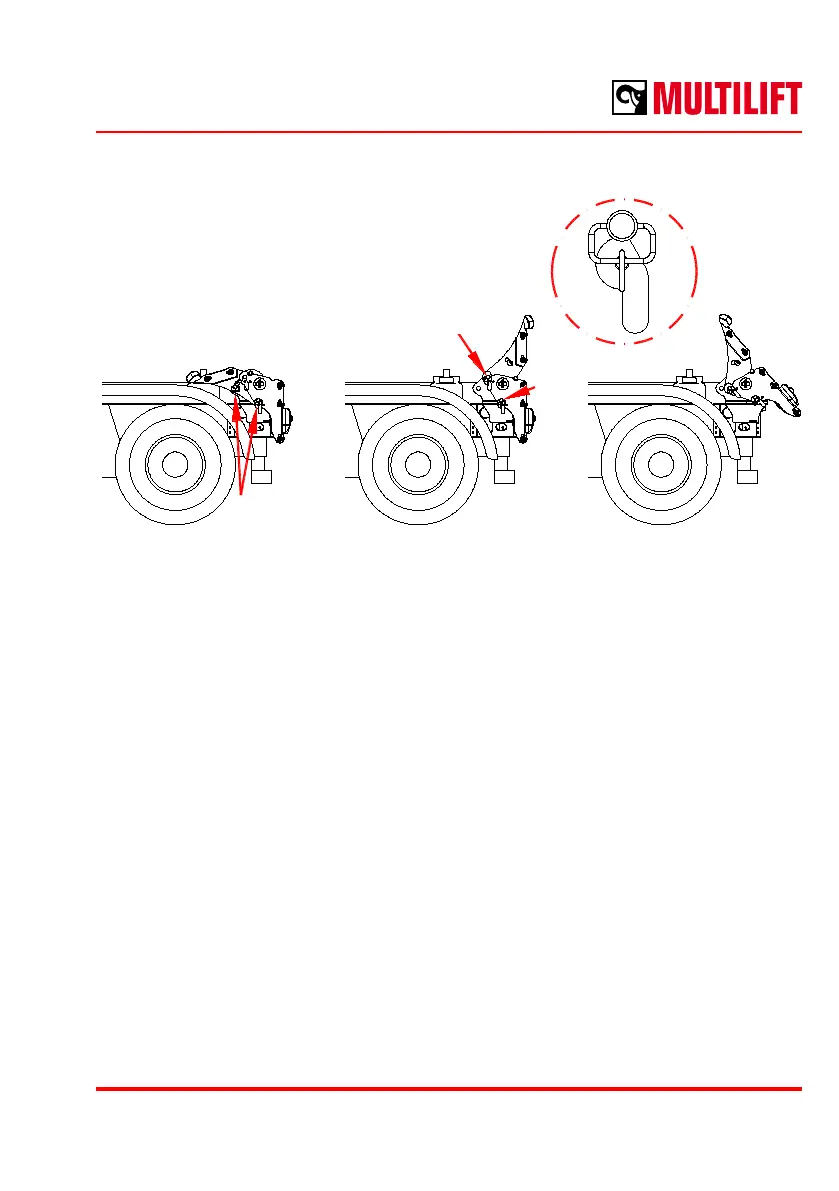

Loading phases
MIDDLE FRAME OF THE XR21S EQUIPMENT RESTS ON THE SUB FRAME AND
THE LIFTFRAME IS IN THE GRIPPING HOOK WHEN STARTING MOVEMENTS
During loading the XR21S equipment is controlled seated from the cabin, using the controls
inside the truck’s cabin.
The recommended pump running speed is between 1000 - 1400 k/min. Let the engine run
at idle speed at the beginning and end of movements and while using the locks.
An ISO container can be loaded in automatic mode A3, because the length of IC and
ICC ISO containers (6058 mm) doesn’t require movements in manual mode outside a
safe working area.
The nal stage of loading a container with a heavy load (more than 10 t), downwards from
an angle of approx. 20 degrees, should be done in manual mode A5, because it enables
horizontal movement forward before lowering the container onto the frame and prevents
the bottom bended by the weight from scraping the body of the XR21S equipment.
>>>
