MULTILIFT XR S - Moving the Liftframe Onto the XR21 S Equipments Hook

XR21S59 CHU 100
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
1 2 3 4
4
3
1
2
3
4

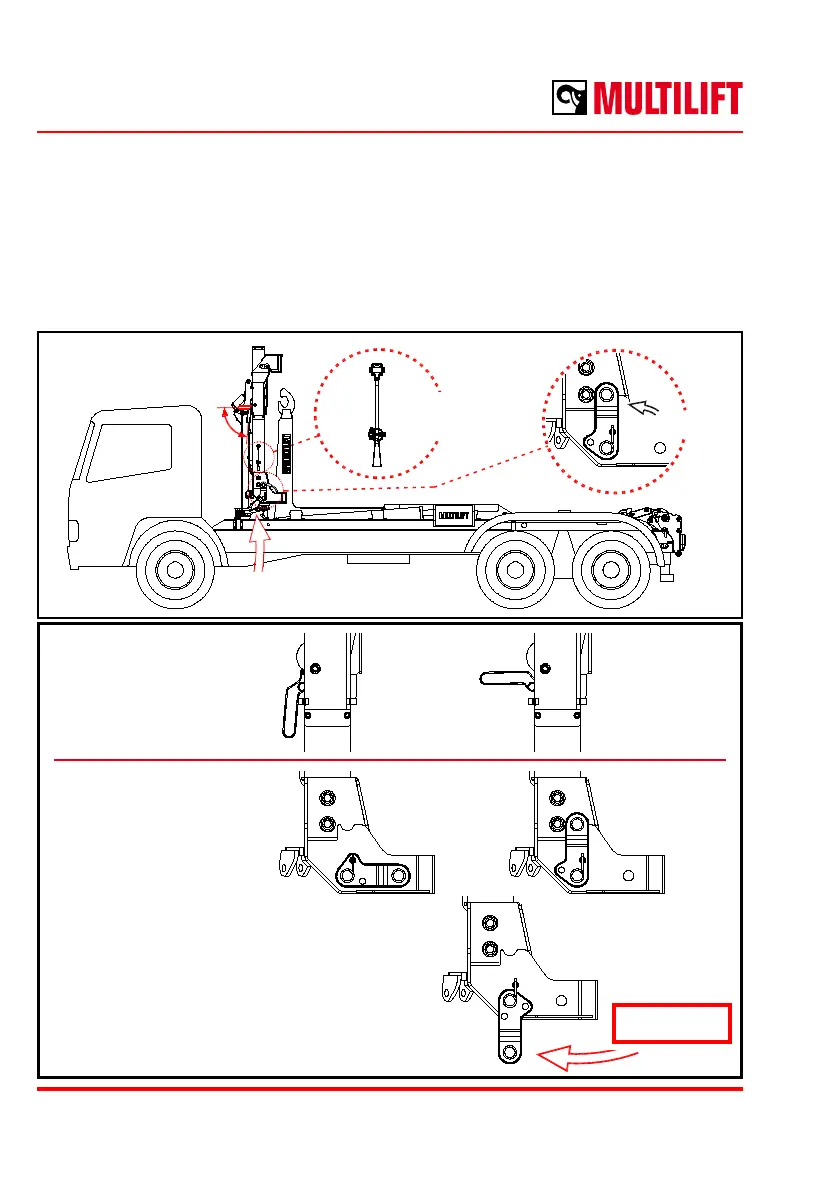

Moving the liftframe onto the XR21S equipment’s
hook
XR21S EQUIPMENT IN TRANSPORT POSITION AND THE LIFTFRAME
ON THE STOWAGE WHEN STARTING MOVEMENTS
Lock grips of the
upper parts of the
liftframe
OPEN
CLOSED
Locking shafts of
the lower parts of
the liftframe
STOWED
position
LOCKED
postion
CROWBAR
Temporary
STOWED
position
NOTE 1!
