MULTILIFT XR S - Control Unit

XR21S59 CHU 8
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
A1
FLAT
A2
TIP
A3
ISO
A4
STO
A5
MAN

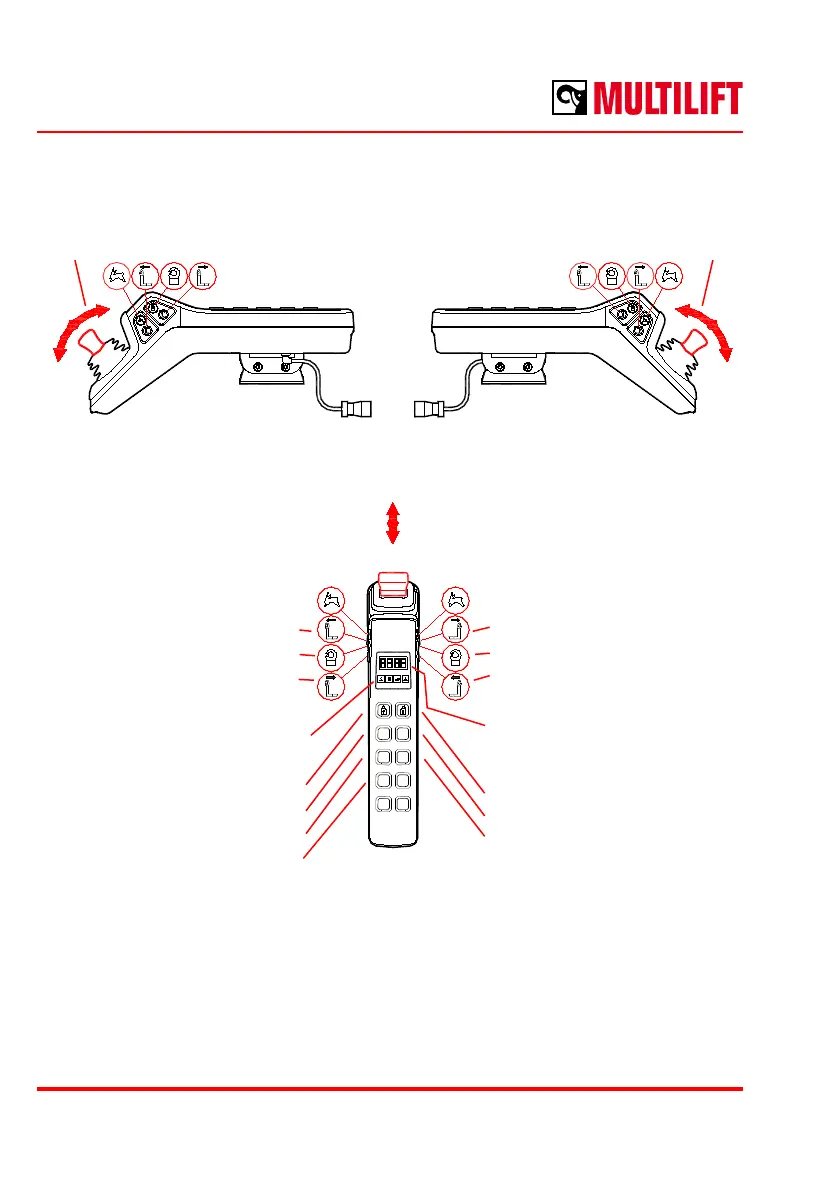

Control unit
Control lever
CAN bus cable
Telescopic arm forward (M)
Hook safety lock
Telescopic arm backward (M)
Signal lights
Bodylocks close
A1 Flatrack (A)
A3 ISO (A)
A5 Manual mode (M)
Telescopic arm forward (M)
Hook safety lock
Telescopic arm backward (M)
Four digit display
(point: voltage OK
and system OK)
Bodylocks open
A2 Tip (A)
A4 Stowage mode
Control lever
Auto mode (
A) - Sequenced Load & Unload
Manual mode (M) - Only Main cylinders Load & Unload
forward
backward
The buzzer which is tted in the control unit is active as follows:
- In Auto modes (A1, A2, A3) when the telescopic arm isn`t fully forward.
- In Manual mode (A5) when the telescopic arm isn`t in fully forward.
- In Stowage mode (A4) when the telescopic arm isn`t in fully forward.
Control lever
