Hooklift Multilift XR21S59 CHU
User Manual
A B

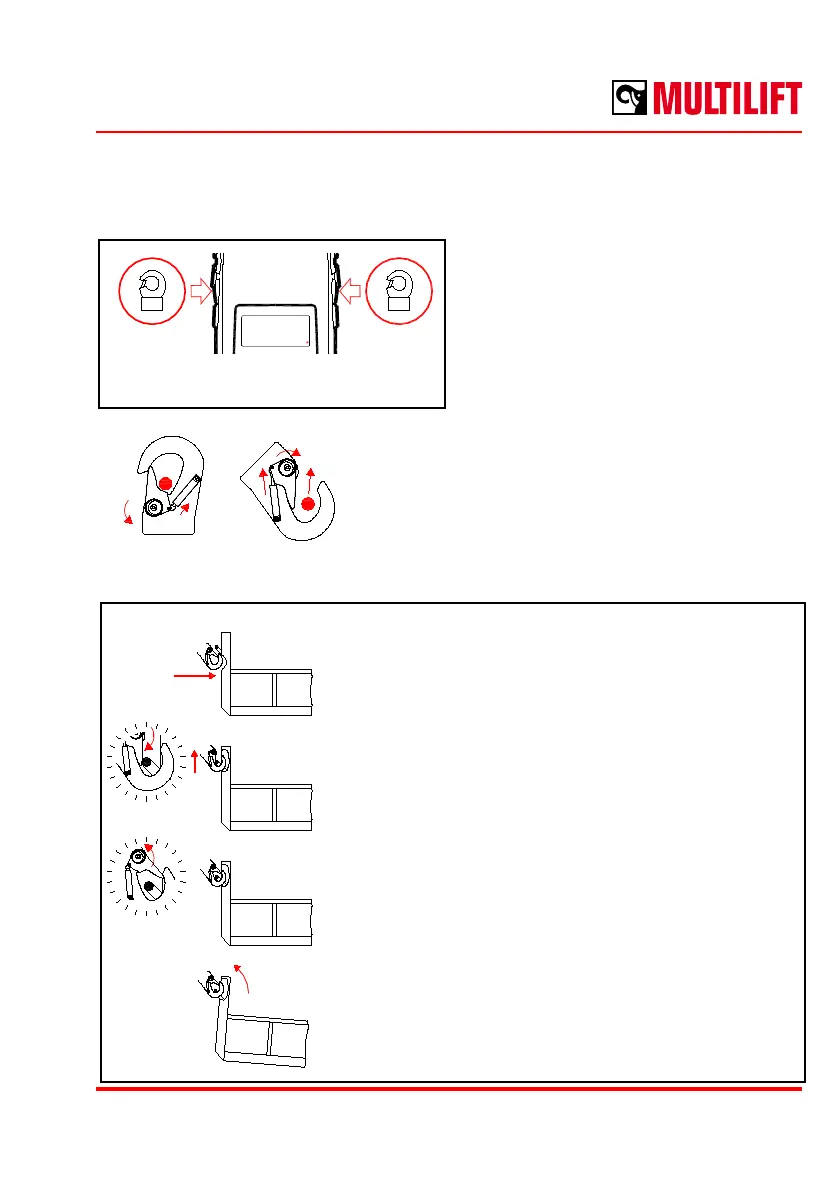

Hook, pneumatic
The safety lock of the gripping hook
is opened by pressing the
corresponding button on the control
unit. Use button A or B.
The safety lock remains open during
1 - 30 secs (adjustable) after the
button is pressed and closes by the
spring force of the pneumatic cylinder.
When the safety lock is open by
pneumatic force, a sound is produced
by the pneumatic cylinder due to the
released air. Press the button again
when necessary.
• Reverse the vehicle so that the hook
is below the gripping bar.
Also see section 11 “loading”.
• Lift the hook by a movement of the
middle frame so that it grips the
gripping bar.
The safety lock is opened when the hook
presses down on the gripping bar.
• Before loading the container, make
sure the safety lock is closed.
• Pull the container on the vehicle.
See section 13 “loading”.
1 - 30 sec.
Delay adjustable
