Tipping lock
Mechanical tipping lock
(locking rear frame to middle frame)

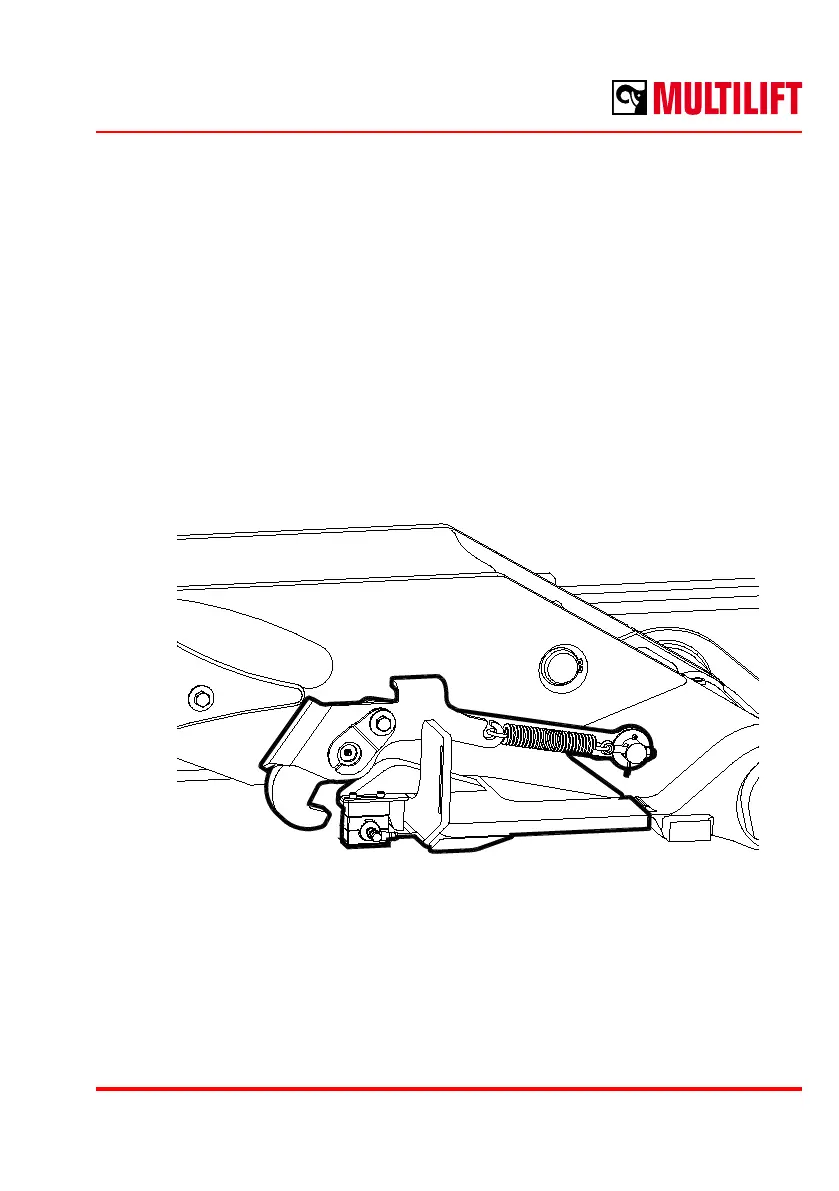

The mechanical tipping lock is situated between the rear frame and the middle frame and
consists of hooks that lock on to lugs. The hooks cannot lock on when the hook arm is in
the rear position. They automatically lock on when the hook arm moves forward more than
100 mm. Tipping is not possible when the hook arm is all the way back. During tipping,
the middle frame is locked to the rear frame by the tipping lock. The tipping lock operates
automatically according to the movements of the hook arm.
Locking mechanisms of the hook
For safety reasons, the tipping, loading and unloading operations are secured with various
locking mechanisms between the frames of the equipment. The container is frontally locked
to the equipment by a gripping hook and by means of hydraulic and/or mechanic locks in
the rear end.
