XR21S59 CHU 160
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual

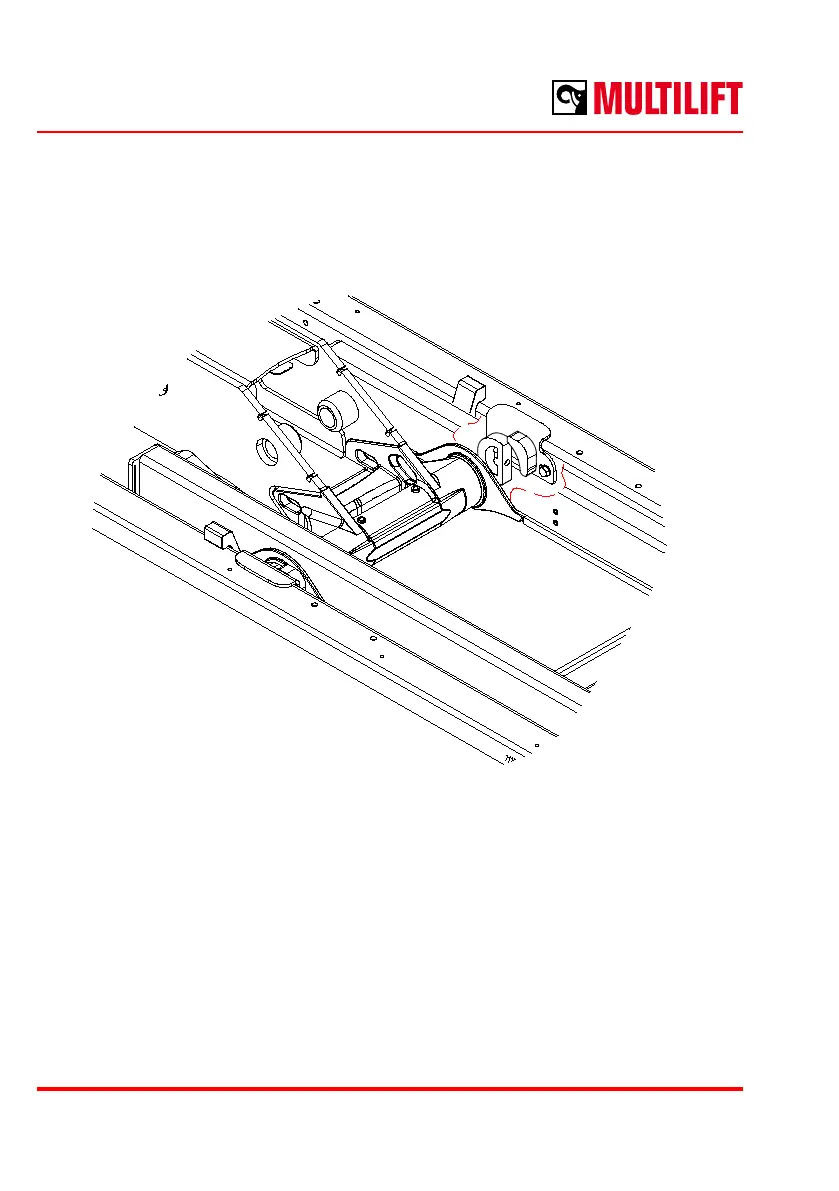

Rear frame lock (locking rear frame to auxiliary frame)
During the lowering of a container, the rear frame is mechanically locked to the auxiliary
frame when the middle frame starts to rise. The lock is achieved by the axle tip on the
middle frame, which slides under the locking stops in the auxiliary frame.
