XR21S59 CHU 142
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
4
2
1
3

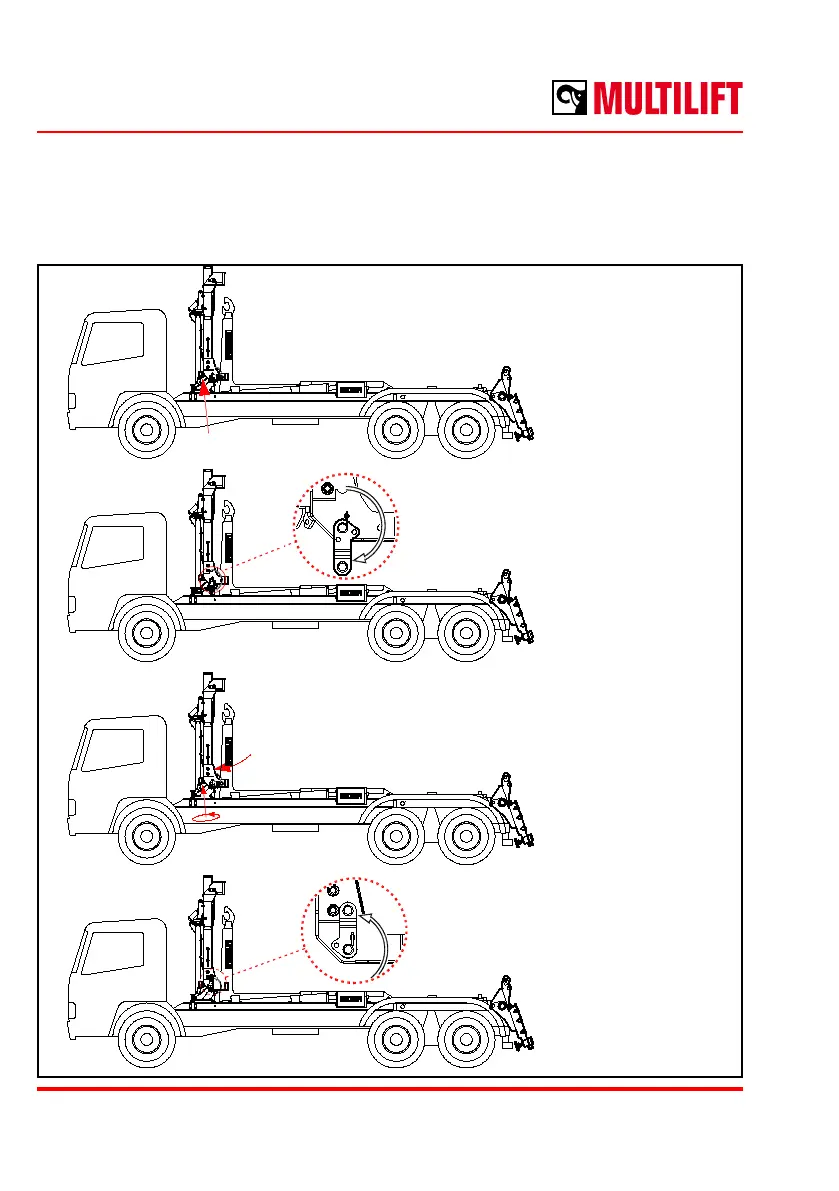

Locking the liftframe to the stowage
LOCKING SHAFTS TO TEMPORARY
STOWED POSITION
LEFT RATCHET INTO LIFTFRAME
BRACKETS
LOCKING SHAFTS TO STOWED
POSITION
LIFT FRAME BOTTOM FORWARD
