XR21S59 CHU 110
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
1
>>>

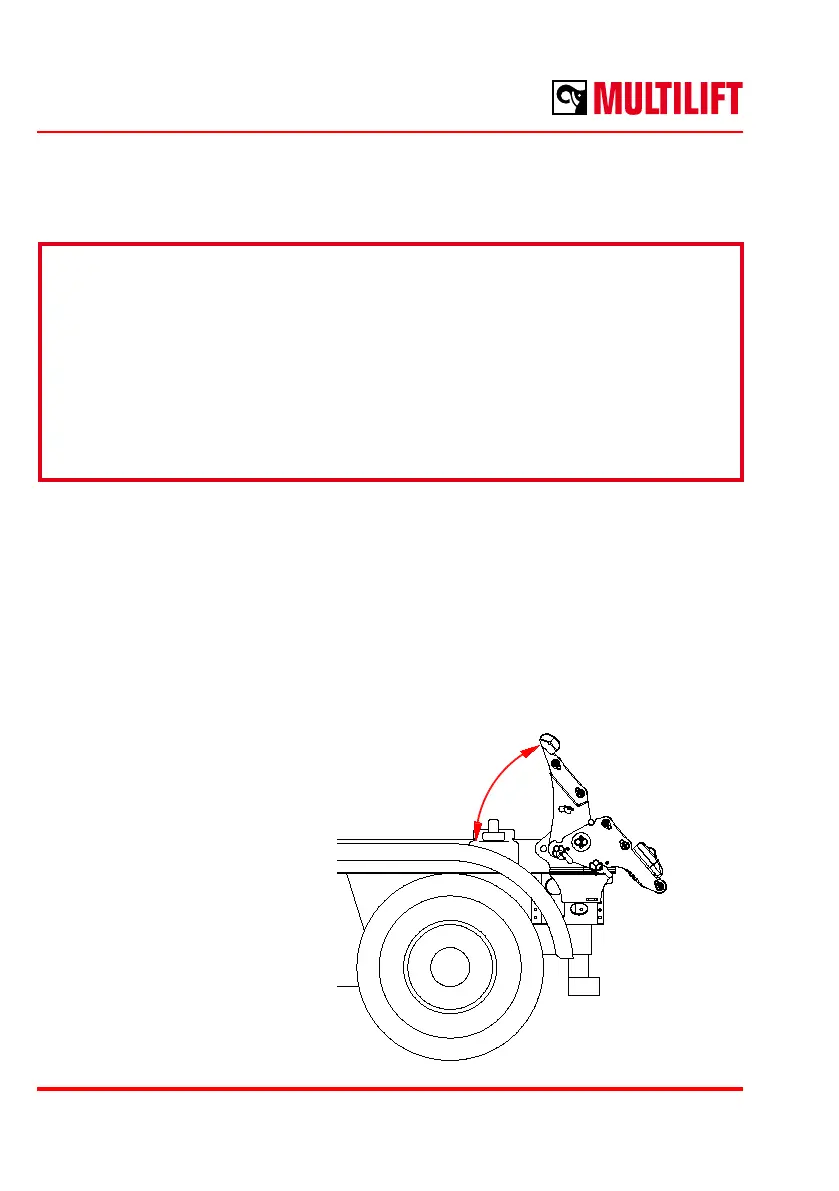

Before gripping and loading the ISO container
CHECK THE ISO CONTAINER SUPPORT ROLLER POSITION ON THE XR21S
-EQUIPMENT BEFORE LOADING AN ISO CONTAINER!
LOADING AND UNLOADING AN ISO CONTAINER WITH A XR21S LIFTFRAME
HAS THE SAME PHASES AS HANDLING A FLATRACK/BODY.
THE DIFFERENCE BETWEEN HANDLING A FLATRACK/BODY IS,
THAT THE SUPPORT ROLLER CRADLES MUST BE IN CONTAINER
READY POSITION (image 1).
If the roller is in the at rack/body change position (picture 2)
2 Pull the roller locking pins o (A).
3 Turn the front part of the roller to an upright position. Lock it to this position by
pushing the shorter locking pin into hole B. Push the longer roller locking pin into
hole C to the point, where you can still turn the roller.
4 Turn the roller to the atrack/body
change position and push the
locking pin to the point where the
head of the pin goes into the
arched groove in the roller frame.
5 After the operation
both locking pins
must be locked to
their correct
positions with
lock latches
(picture 5).
