MULTILIFT XR S - Flatrack;Body

XR21S59 CHU 23
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
W
ID
Flatrack/body
The demountable body can be a NATO STANAG 2413 atrack, DIN 30722-1/2 atrack
(max length 6650 mm), DIN 14505 atrack (3765 mm locks, max 6650 mm), ISO IC & ICC
container or Swiss Standard pallet.
Check to be sure that the atrack/body is suitable for the load to be transported. Generally
each atrack/body has a model plate (ID) on which the length and permissible load are
specied.

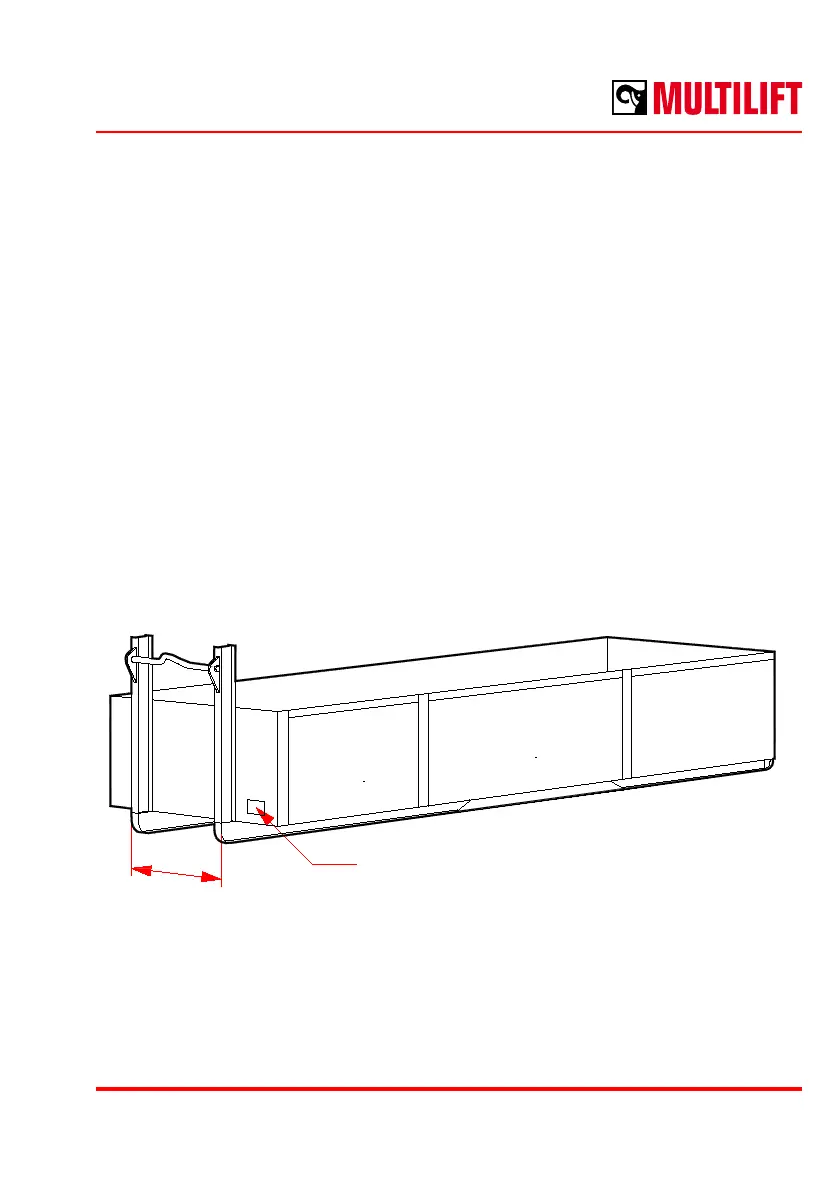

Before picking up the atrack/body, check that the hook height (H), tunnel height (T) and
the width (W) correspond with the XR hooklift dimensions and that the notches for the
body locks are in correct positions.
If there is even the slightest doubt of the atrack/body dimensions, measure them rst in
order to prevent the XR equipment and the atrack/body from being damaged.
Gripping height (H), tunnel height (T) and width (W) of the atrack/body can vary from one
atrack/body to another. Note that they are country specic dimensions. If there is doubt
about the origin of the atrack/body, the tunnel height and width must be checked in order
to ensure that they are compatible with those of the XR equipment.
