Before loading a atrack/body
CHECK THE POSITION OF THE ISO CONTAINER SUPPORT ROLLER
ON THE XR21S -EQUIPMENT BEFORE LOADING A FLATRACK/BODY!
THE ROLLER CRADLES MUST BE IN FLATRACK POSITION

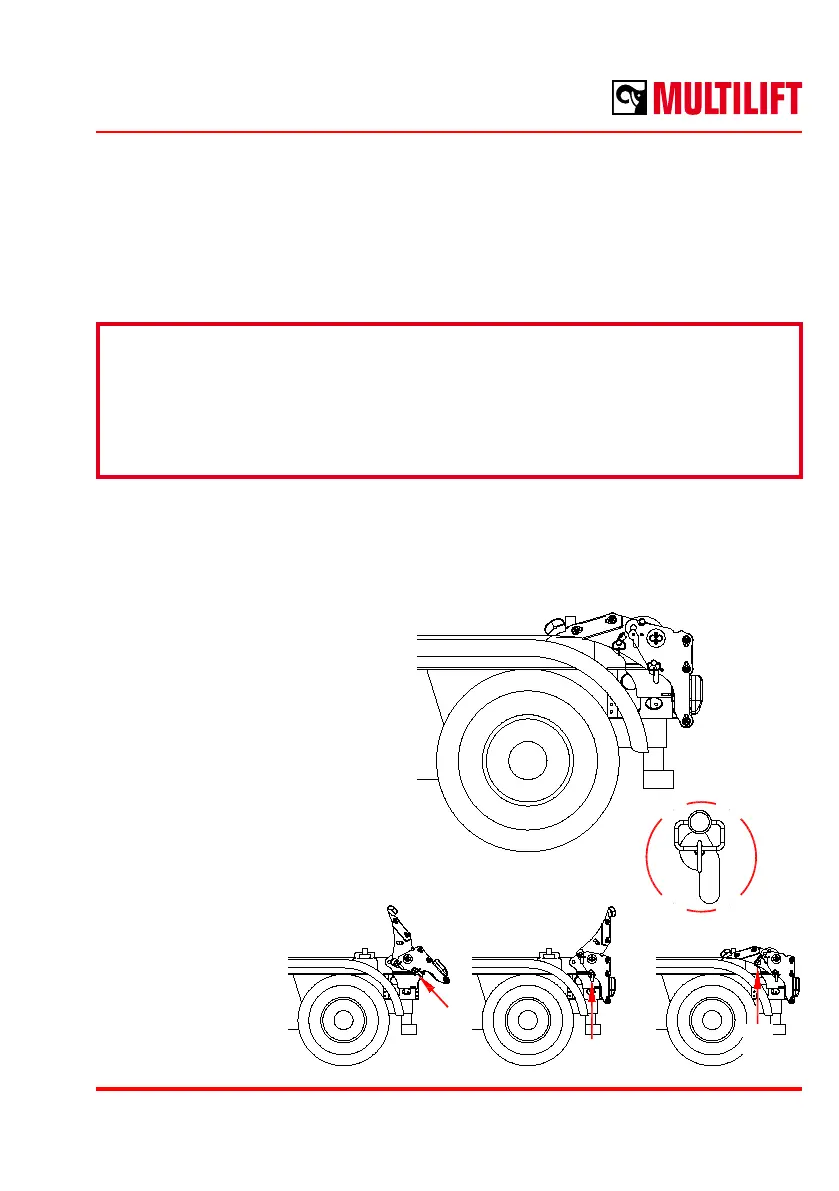

(image 1) WHILE HANDLING FLATRACKS/BODIES.
If the roller is in the ISO container position (picture 2)
2 Pull the longer roller locking pin out to the point where the roller can be moved
(do not pull the whole locking pin out).
3 Turn the roller to an upright
position. Lock the roller to this
position by pushing the locking
pin back in.
4 Pull the shorter roller locking pin
o, lower the front part of the
roller, and lock it to down position
with the locking pin (hole A).
5 After the operation both locking
pins must be locked to their
correct positions with lock latches
(picture 5).
