MULTILIFT XR S - Main Components

XR21S59 CHU 7
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
1
6
7
2
4
10
5
3
9
11
12
17
16
18
8
15
13
14

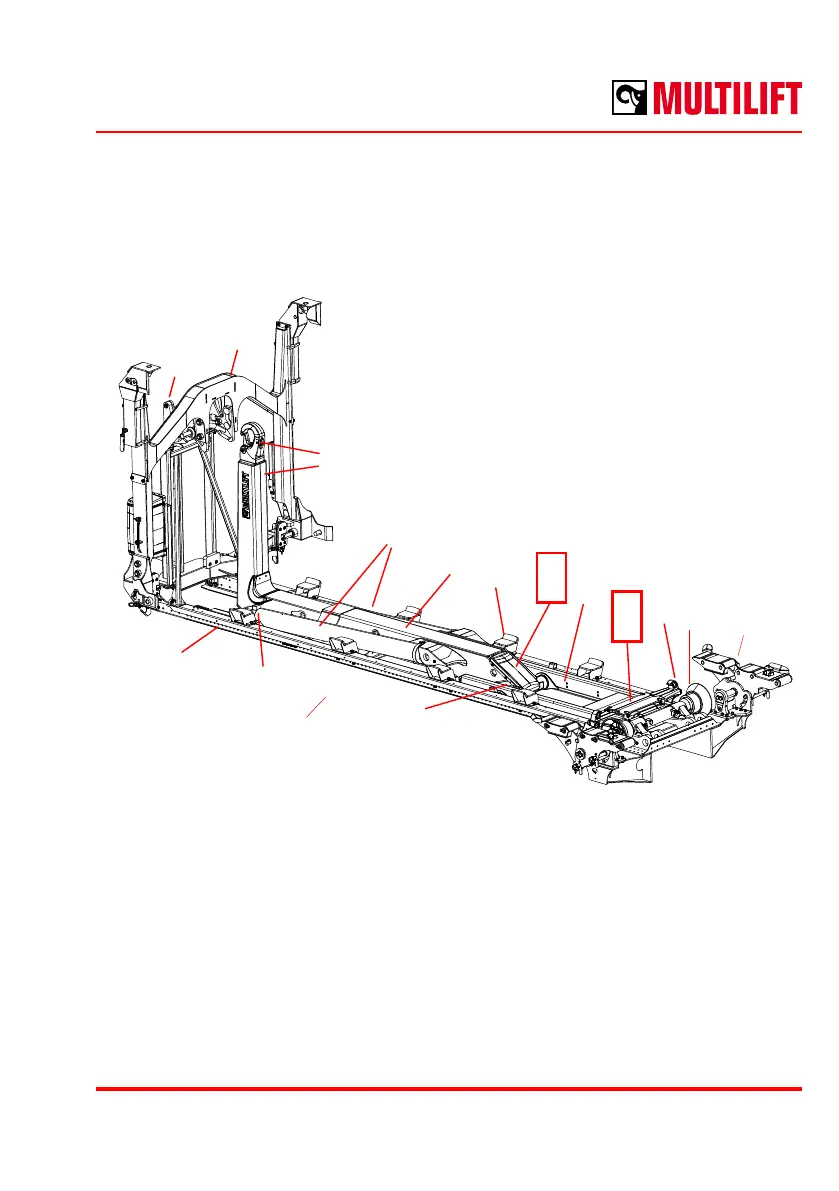

Main components
Due to continuous product development some picture details may look di󰀨erent when
compared to the actual device.
1. Gripping hook and hook arm
2. Middle frame
3. Body locking, hydraulic
4. Rear frame
5. Rear rollers
6. Sub-frame
7. Main cylinders
8. Body locking cylinder (inside the frame beam of the lockings)
9. Mechanical tipping lock
10. Body support
11. Control valve
12. Load holding valve of the main cylinder
13. Telescope cylinder (inside the middle frame)
14. Double check valve of the telescope cylinder
15. Locking cylinder check valve
16. Liftframe
17. Stowage
18. ISO container support rollers
