Hooklift Multilift XR21S59 CHU
User Manual

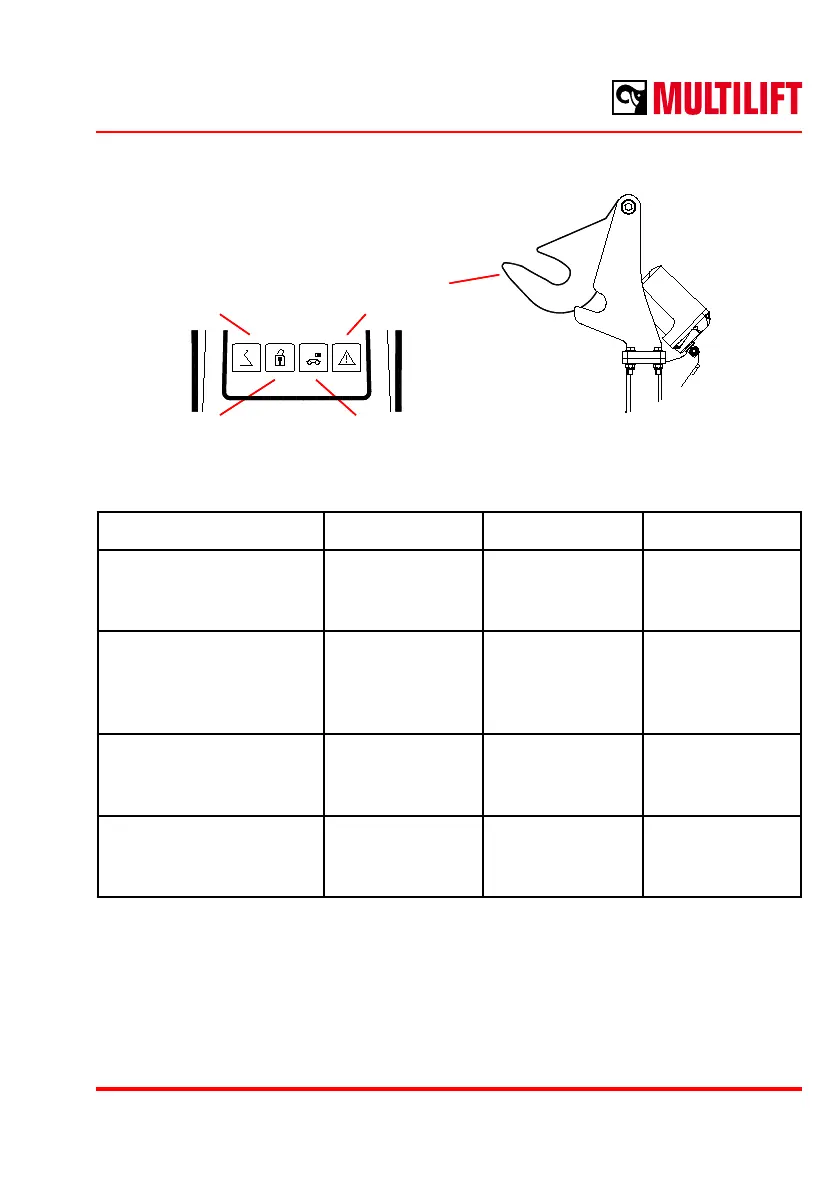

Signal lights of control unit
Middle frame Hook of stowage
Body locks URB
SIGNAL LIGHT O󰀨 Blinking On
Middle frame Middle frame
down
Middle frame
almost down
(oating)
Middle frame is
raised
Body locks Body locks are
closed or the pull
limiter is engaged
Body locks are
in transitional
position
Body locks are
open or the pull
limiter is not
engaged
Under-run bar Under-run bar is
fully extended
Under-run bar
is in transitional
position
Under-run bar is
fully retracted
Stowage hook Stowage hook
down (in)
Stowage hook
in transitional
position
Stowage hook up
(out)
