Hooklift Multilift XR21S59 CHU
User Manual
2
Opening ISO container locks
1. The container is locked in the back with TWISTLOCKS. Open these rst.
Rotate the tightening wheel counter clockwise. Rotating rst loosens the locks
and nally the clasp is turned 90° into lengthwise position and it may be
released from the container corner box.

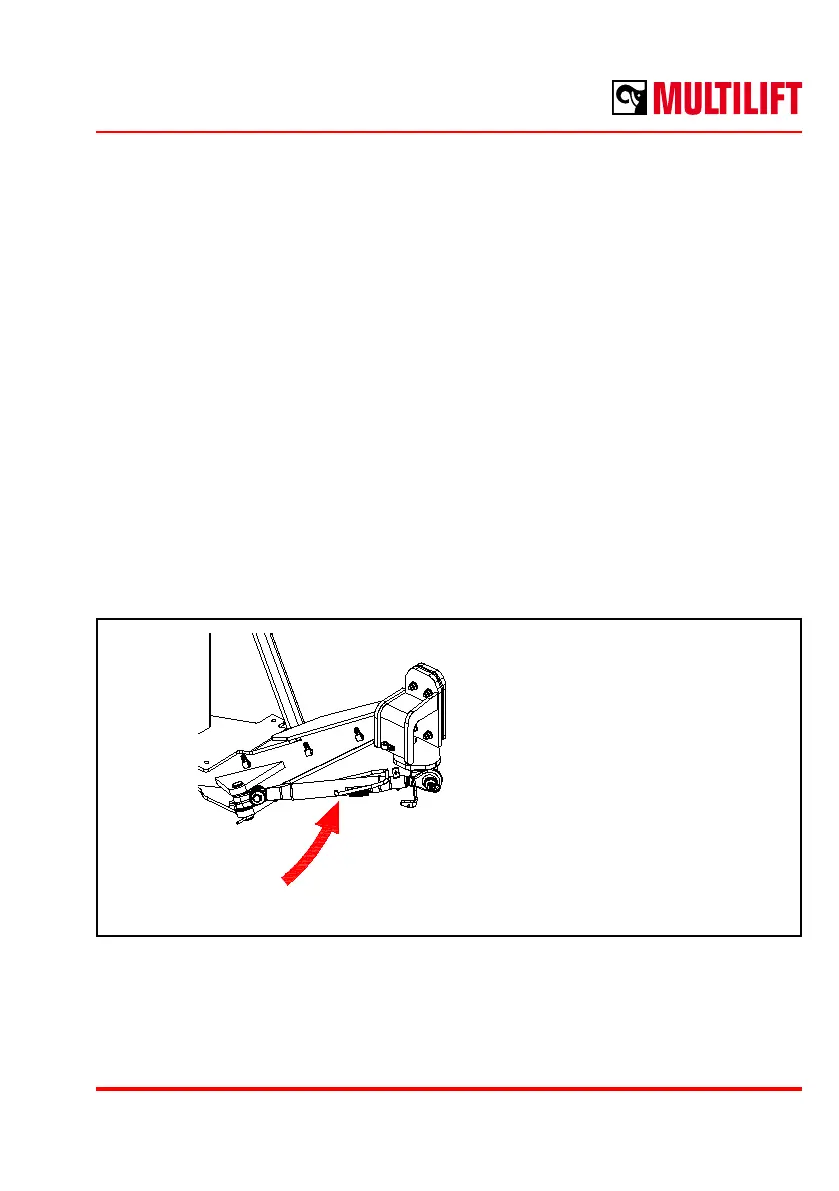

2. The front of the container is attached with ratchets from the liftframe to the
XR21S equipment stowage. Open these locks after the TWISTLOCKS.
First rotate the middle sections of the ratchets enough to loosen them. Detach
the ratchet shafts from the attachment brackets on the liftframe from both
sides of the truck. Attach the ratchets to fastening pins on the inner sides of the
lower sides of the stowage with linch pins.
RELEASE THE RATCHET
ATTACHMENT JOINTS
FROM THE LIFTFRAME
BRACKETS AND MOVE THEM
TO
STOWAGE
