MULTILIFT XR S - Page 153

XR21S59 CHU 153
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
!
XR21S56 XR21S59
G (mm) 5560 5860
h (mm) 270
H (mm) 1570
t (mm) 105
B (mm) 2800 2850
SL (mm) 6563 6563
SL
G
B
HM
h
t
H

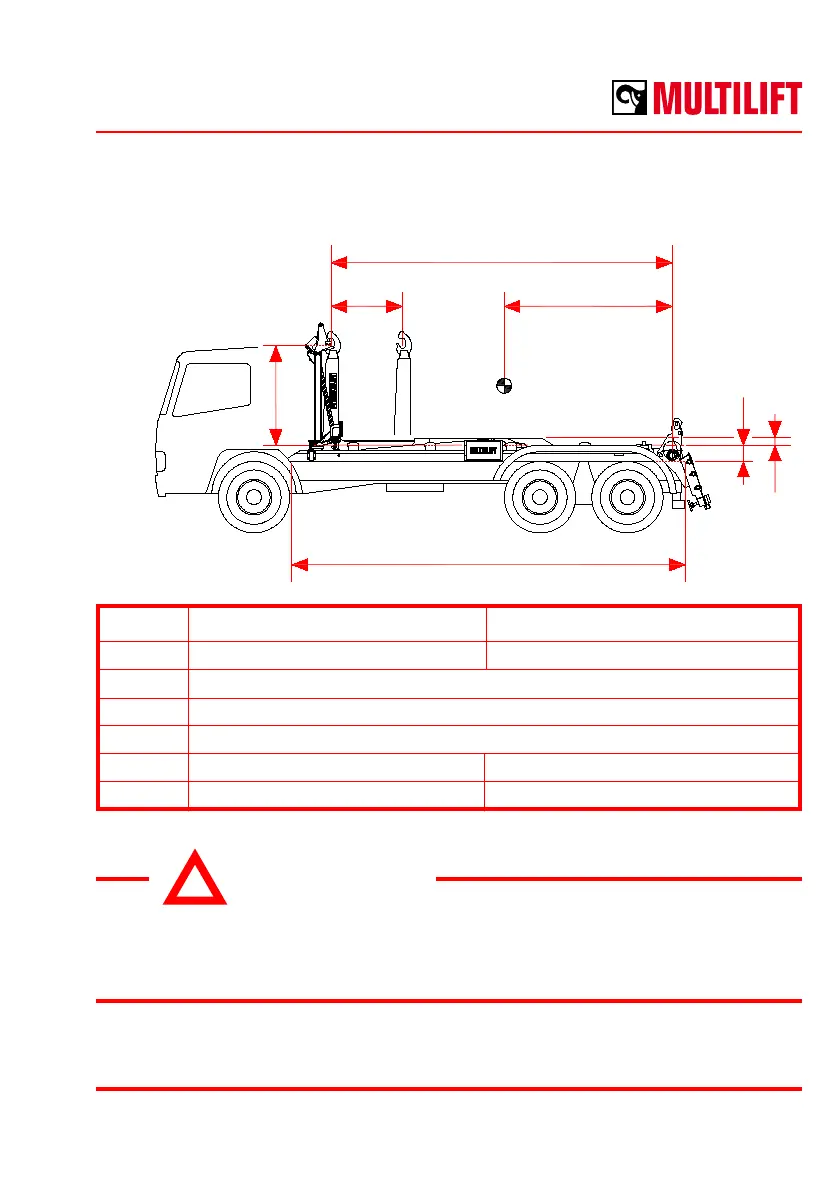

XR21S dimensions
BE AWARE!
When transporting the body with the sliding frame in rear
position, the hydraulic body lockings must be closed.
