MULTILIFT XR S - Page 155

XR21S59 CHU 155
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
1
4
3
2
12
9
7
6
12
12
5
11
10
8

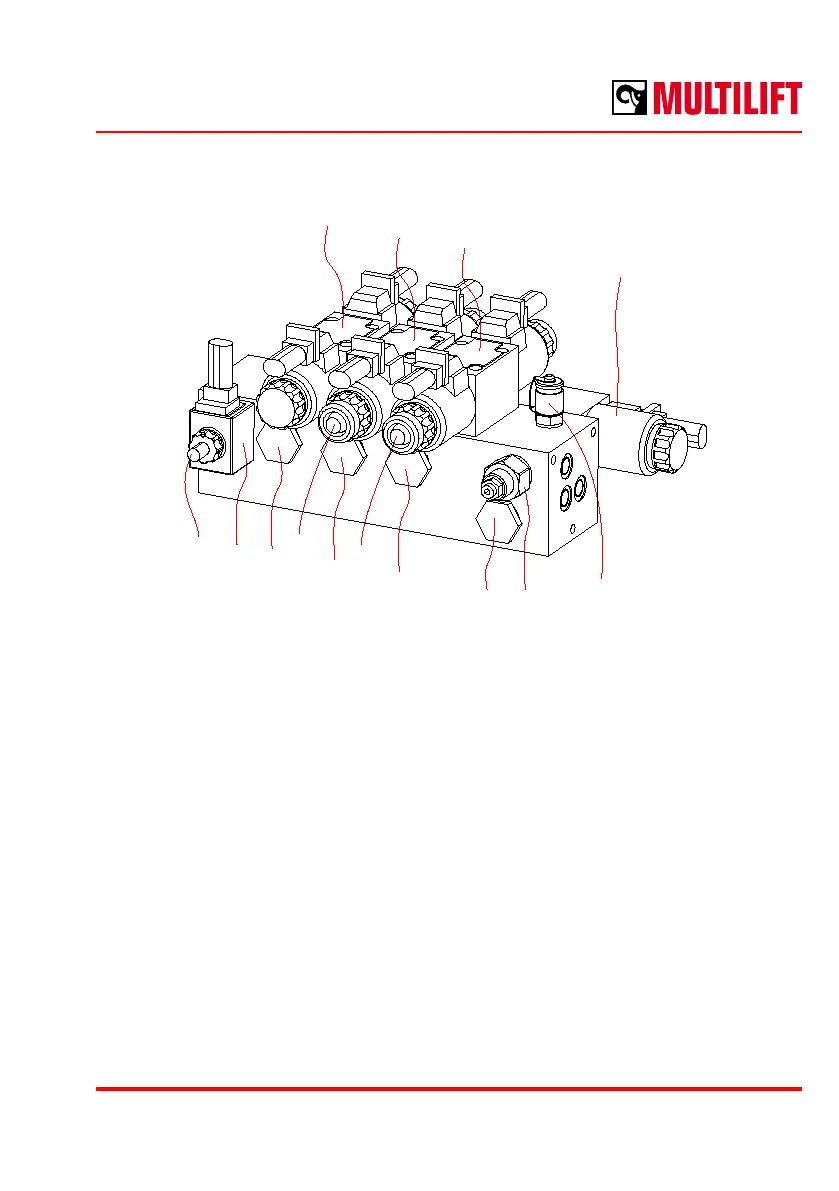

1. Container locking cylinder directional valve
2. Hook arm cylinder directional valve
3. Main cylinders’ rst directional valve
4. Main cylinders’ second directional valve
5. Free circulation valve
6. Body locking cylinder pressure limiting valve 18 MPa
7. Body locking cylinder pressure limiting valve 18 MPa
8. Hook arm out push pressure limiting valve 18 MPa
9. Main pressure limiting valve 30 MPa
10. Adjustable by-pass valve 16 - 40 l/min
11. Pressure measuring nipple
12. Emergency operation push button
EMERGENCY OPERATION
See maintenance manual.
