XR21S59 CHU 162
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual

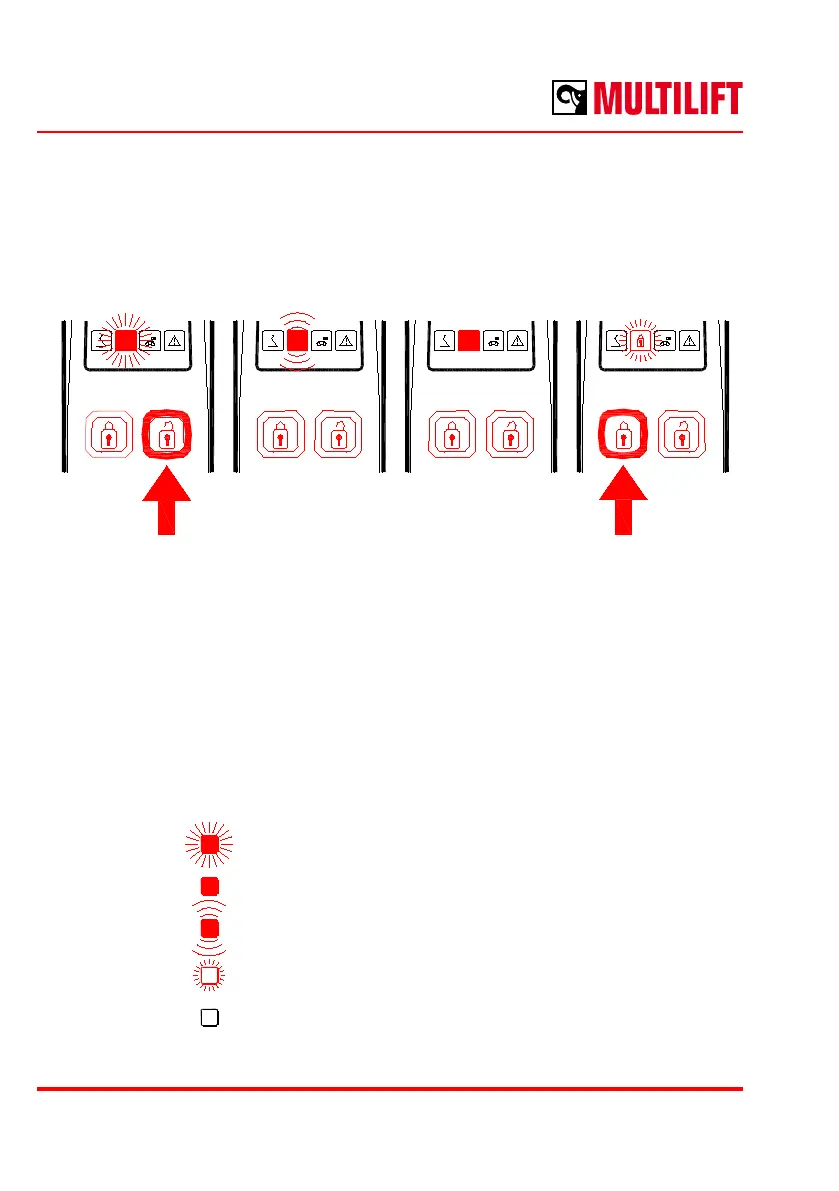

Switch and signal light of hydraulic body locks
Locking hooks Locking hooks
Open in intermediate open Close
body locks position body locks
The body locks are opened by pressing the switch in the control unit. A illuminated lock signal
light on the control unit means that the body locks are not fully closed. When in trac, no
driving or tipping is to be commenced if the light is on. Remove the element obstructing the
locks, or if they are obstructed by the lock pocket in the atrack/body frame beam, check
that the atrack/body is correctly positioned on top of the hook device.
Signal light comes on
Signal light illuminated
Intermittent signal light
Signal light goes out
Signal light o
