PROFI TX

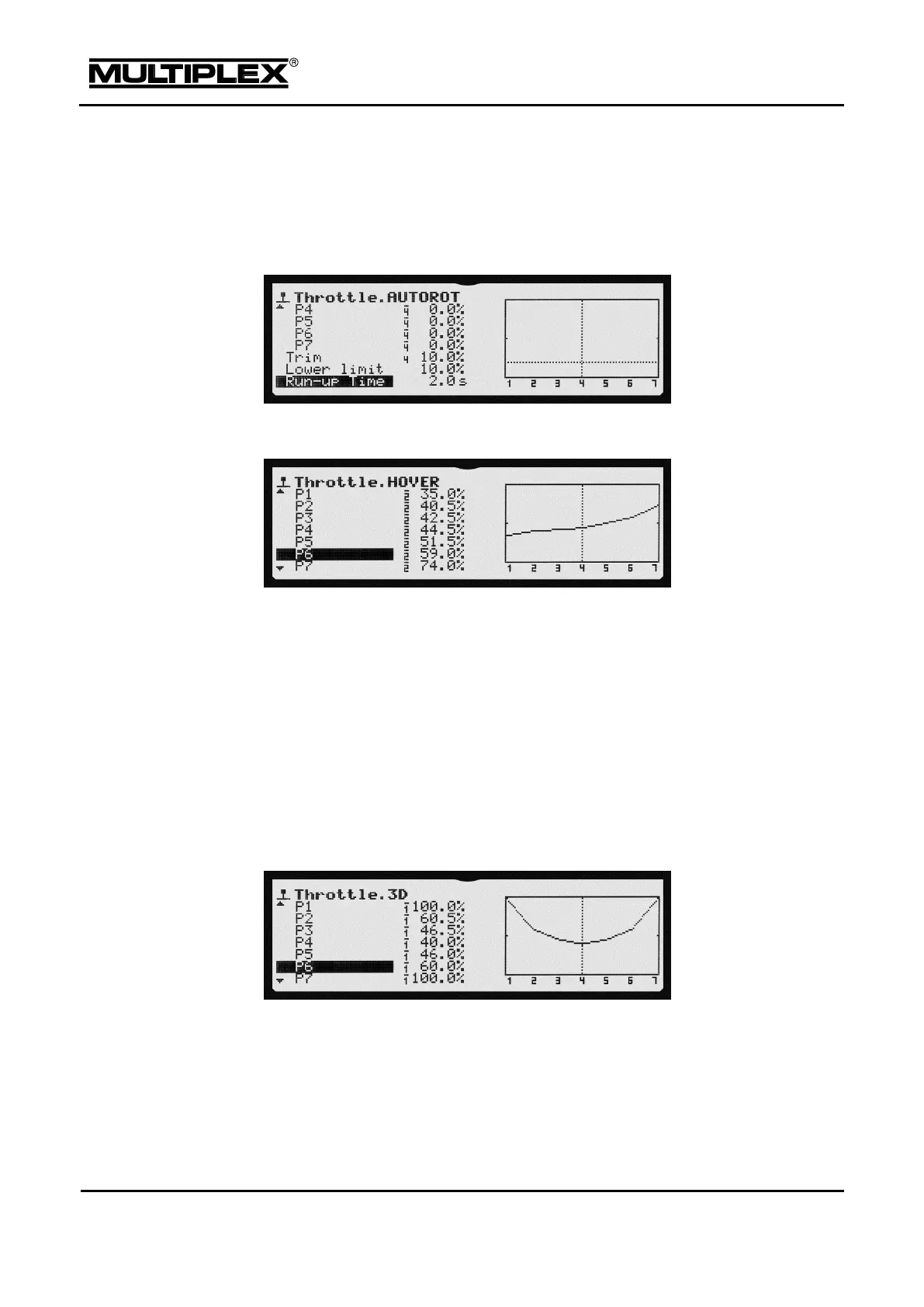

Special case: auto-rotation
In the AUTOROT flight phase the throttle curve is switched off. All curve points have
the same value: You can set the throttle position for auto-rotation at every curve
point. The lower limit is switched off. For training with an internal-combustion
engine, set a value at which the motor does not yet stop.
Example: throttle curve in the HOVER flight phase
Simple throttle curve for hovering:
 For a negative collective pitch (= descending) the lowest motor power is
required (in the example: P1 = 35%).
 A positive collective pitch (= climbing) requires the highest motor power
(in the example: P7 = 85.5%).
Example: throttle curve in the 3D flight phase
Symmetrical V-shaped throttle curve for increased throttle when climbing in normal
and inverted flight:
