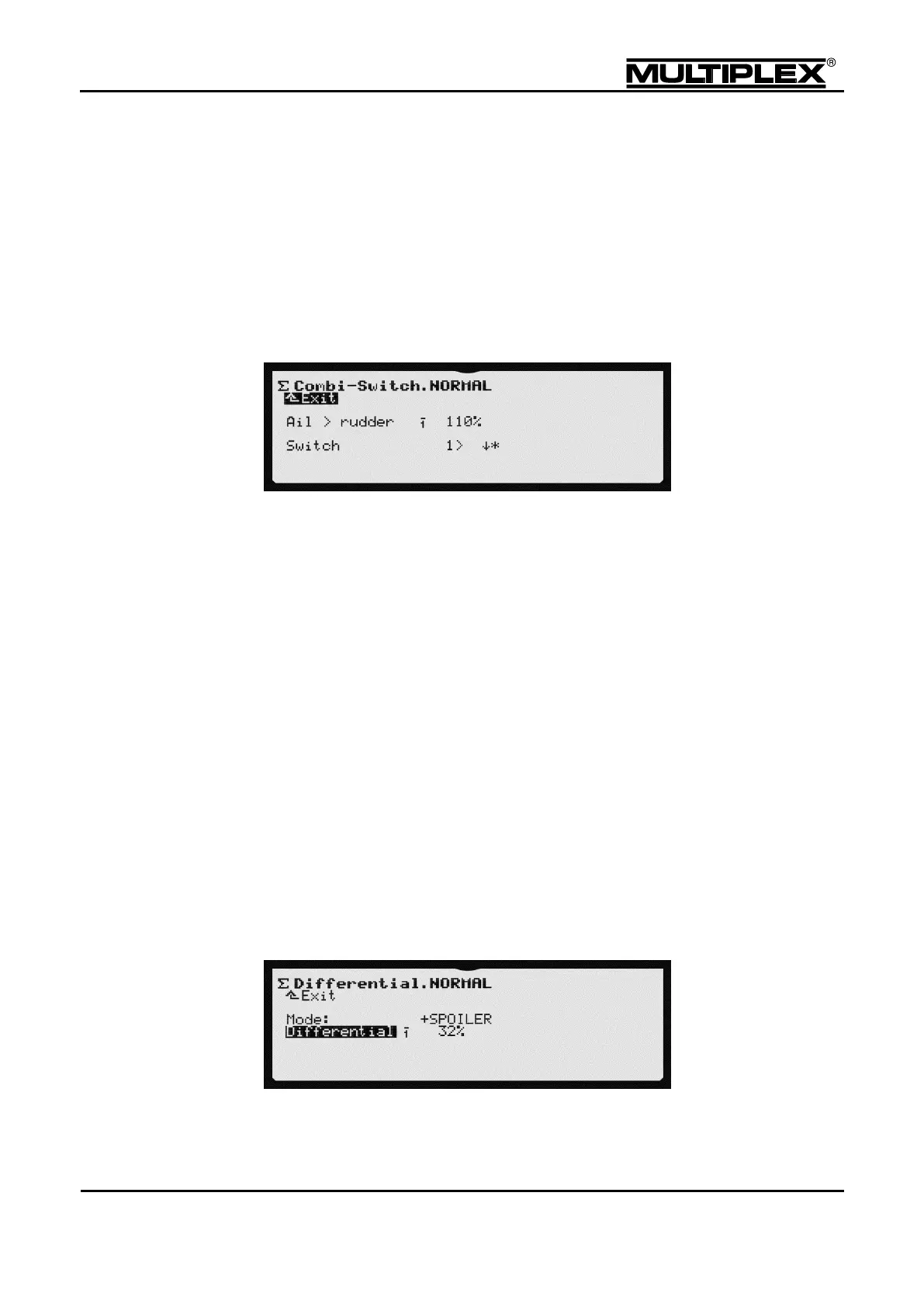

5.5.1.1 Combi-Switch
The Combi-Switch couples aileron and rudder in a way that allows both of the
control functions to be controlled by either of the functions. This makes it easier to
fly accurate turns.
The Combi-Switch can be configured for specific flight phases. You define the
associated switch in the Setup > Assign.Switches menu using the CS/DTC
parameter (see section 5.3.6 "Assign.Switches" on page 102).
Ail > rudder or Ail < rudder
Percentage of the respective control function (%).
Increment: 2%
Adjustment range:
Switch
The switch used and its respective switch position are displayed here.
(In the example: <2, on the left side of the transmitter, # = switched on when
back)
5.5.1.2 Differnt.Ail
You use the Differnt.Ail menu to configure the aileron differential. Refer to
section 8.1.3.1 "Configuring aileron differential" on page 183 for differential
information.
