Multiplex PROFI TX 9 - Underside View

Transmitter
Page 26
PROFI TX
3.1.2 Underside view

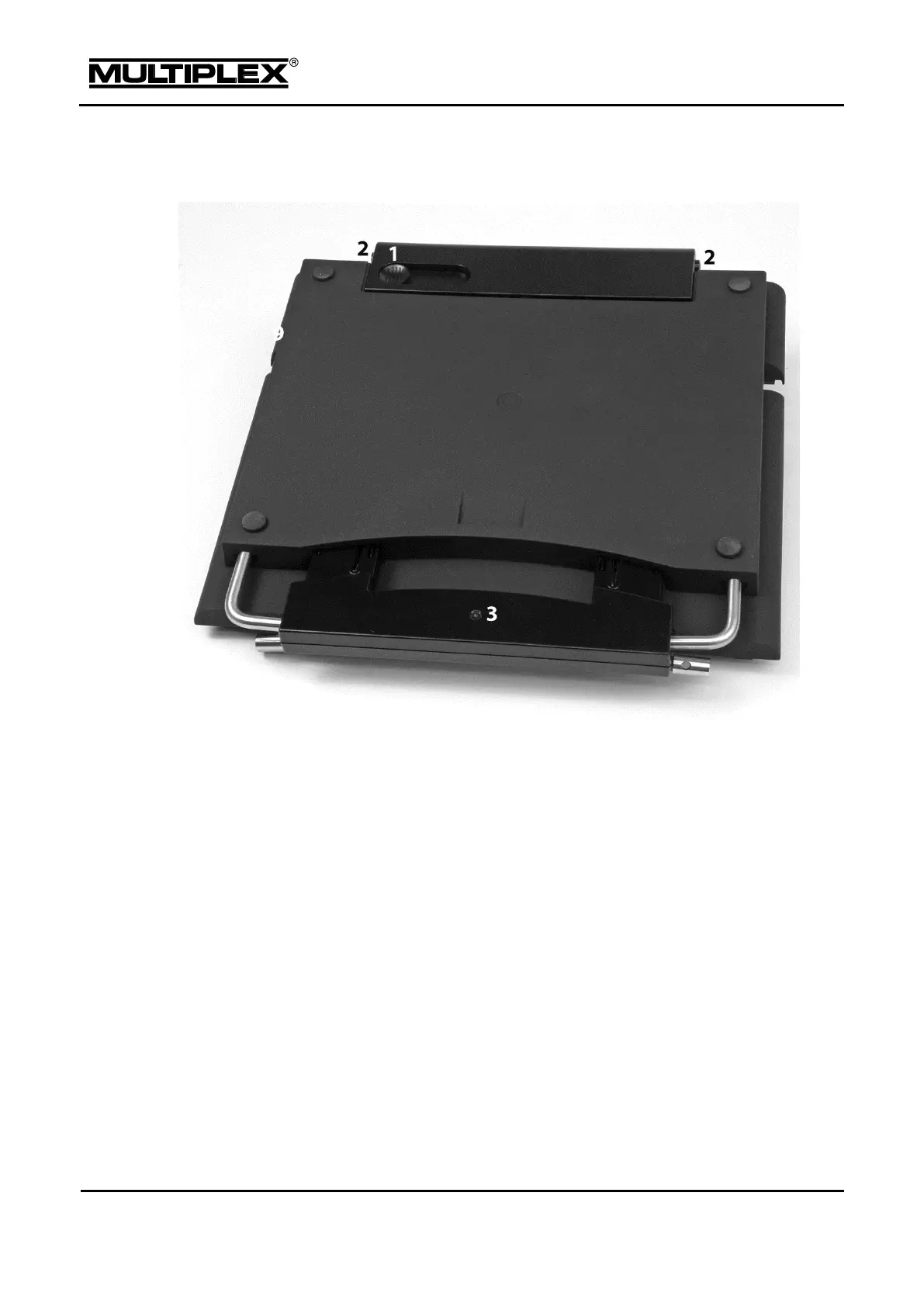

Fig. 2: Underside view of the transmitter
1
Recessed control for the sliding latch for USB sockets (see section 3.1.5
"Connections" on page 29)
2
Fasteners for opening the case (see section 3.3.1 "Opening and closing the
case" on page 31)
3
Carry bars
