Transmitter
PROFI TX
Page 29
3.1.5 Connections

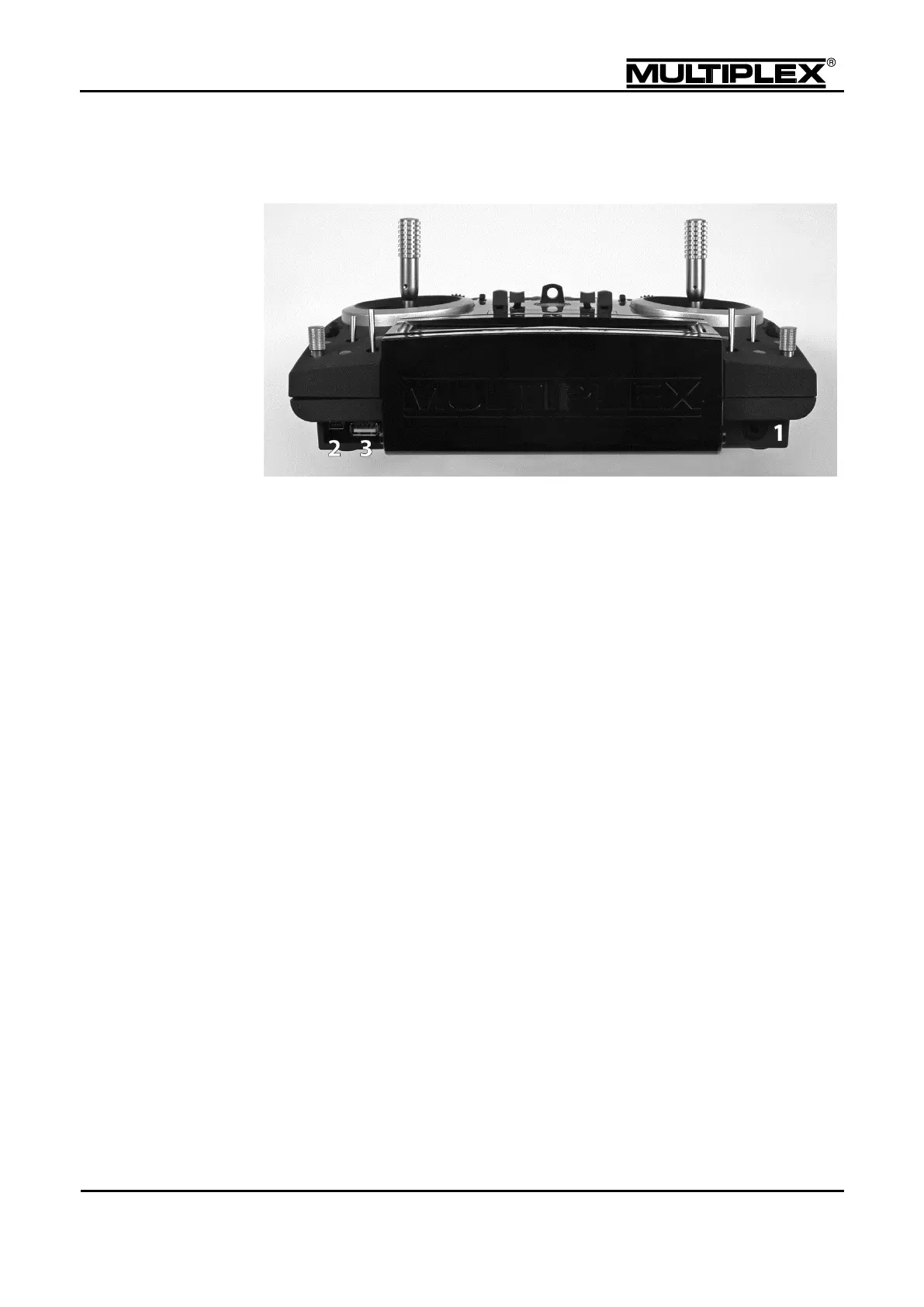

Fig. 4: Connections on the transmitter
1
Connection for headset (stereo jack); when a headset is connected, the
loudspeaker of the PROFI TX is switched off
2
Mini USB socket for connecting the PROFI TX to a PC and for charging the
battery via the charging socket (see section 3.4.1 "Charging the battery" on
page 41)
3
USB-A socket for future expansions
