PROFI TX
Page 23
3 Transmitter
3.1 Transmitter overview
3.1.1 Top view

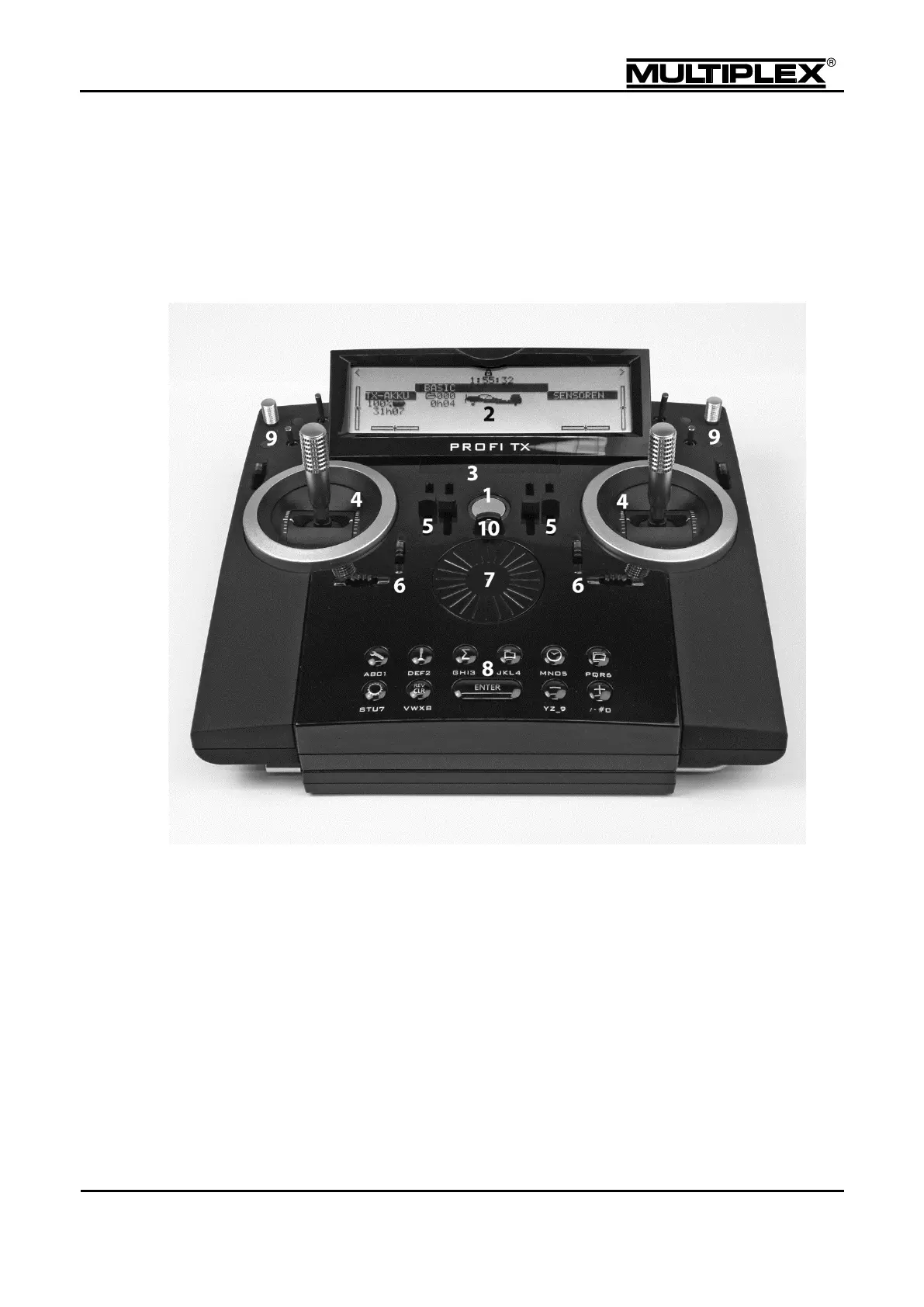

Fig. 1: Top view of the transmitter
1
Power button with annular light (see section 0 "Switching on" on page 44).
The annular light indicates the status of the RF module during operation
(see section "Annular light" on page 25).
2
UV-stable, anti-glare graphic LCD unit (256 x 64 dots) featuring high contrast.
The contrast can be optimised for the screen (see section 5.3.8 "Transmitter"
on page 109), and the screen can be raised as required.
