Model templates
Page 68
PROFI TX
4.1.6 BIG SCALE model template
This model template is suitable for large-scale power models with 2 elevator servos
and landing flaps.
Servo assignment
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name
Mixer inputs
Options & settings
Value (%)
Combi-Switch
Ail <> rudder
Ail < rudder
OFF
Differnt.Ail
Aileron
Mode
Differnt.Ail
+SPOILER
50%
Pre-defined mixers on the servo side
Name
Mixer inputs
Options & settings
Value (%)
ELEVATOR+
Elevator
š
Up and down
travels are
asymmetrical
100%
100%
Spoiler
œ
Single-sided travel,
with centre
OFF
OFF
Flap
š
Up and down
travels are
asymmetrical
OFF
OFF
Function
1+6
AILERONS+
2+5
FLAPS+
3+4
ELEVATOR+
7
Rudder

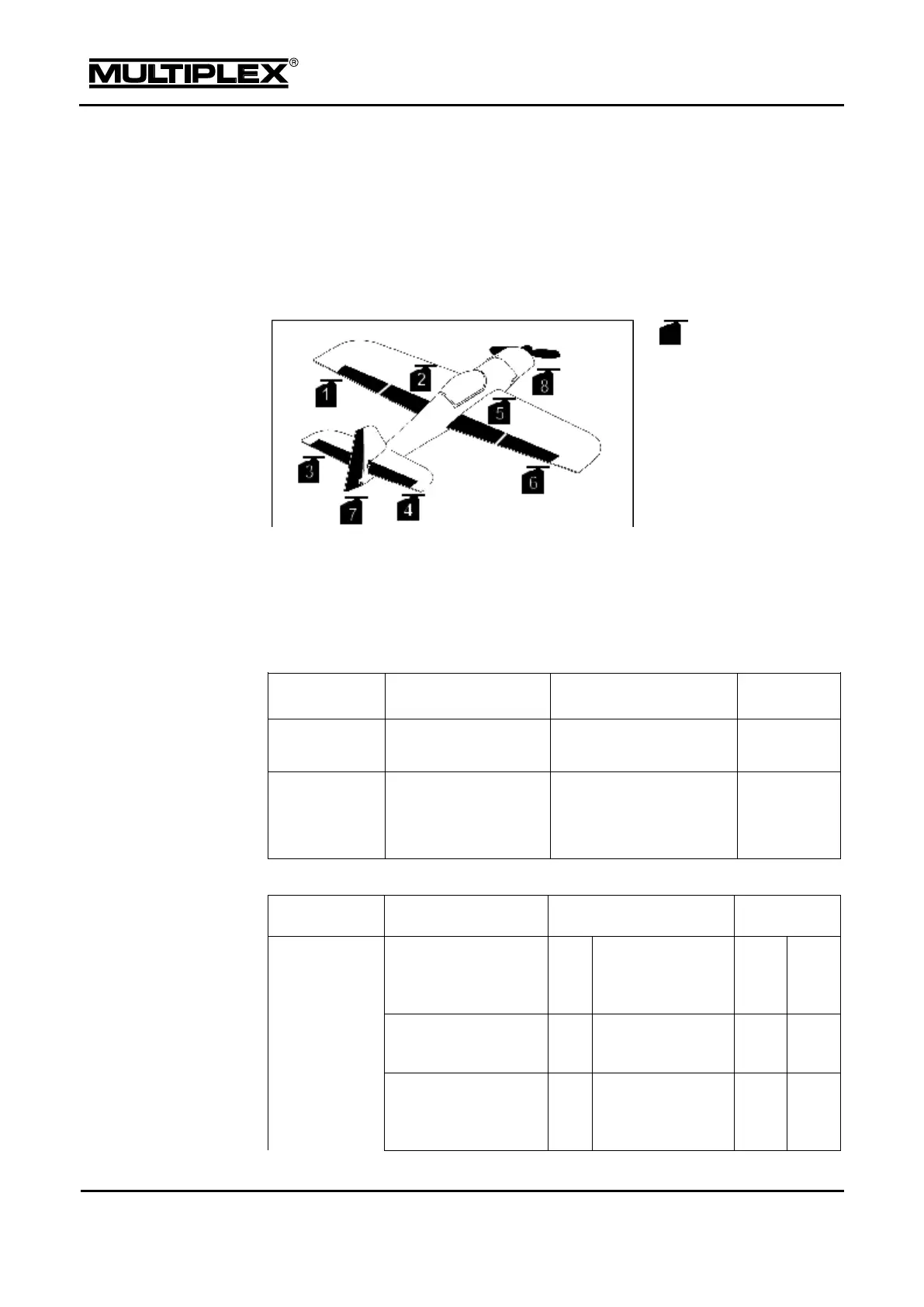

Fig. 13: BIG SCALE servo assignment
8
Throttle
