Creating and customising models
Setting the maximum servo travel (control surface travel)
At this point, set the maximum required value for blade deflection; this is generally
the auto-rotation value. The smaller values required for normal flying can be set for
the individual flight phases in the ControlFunctions menu under Collective.

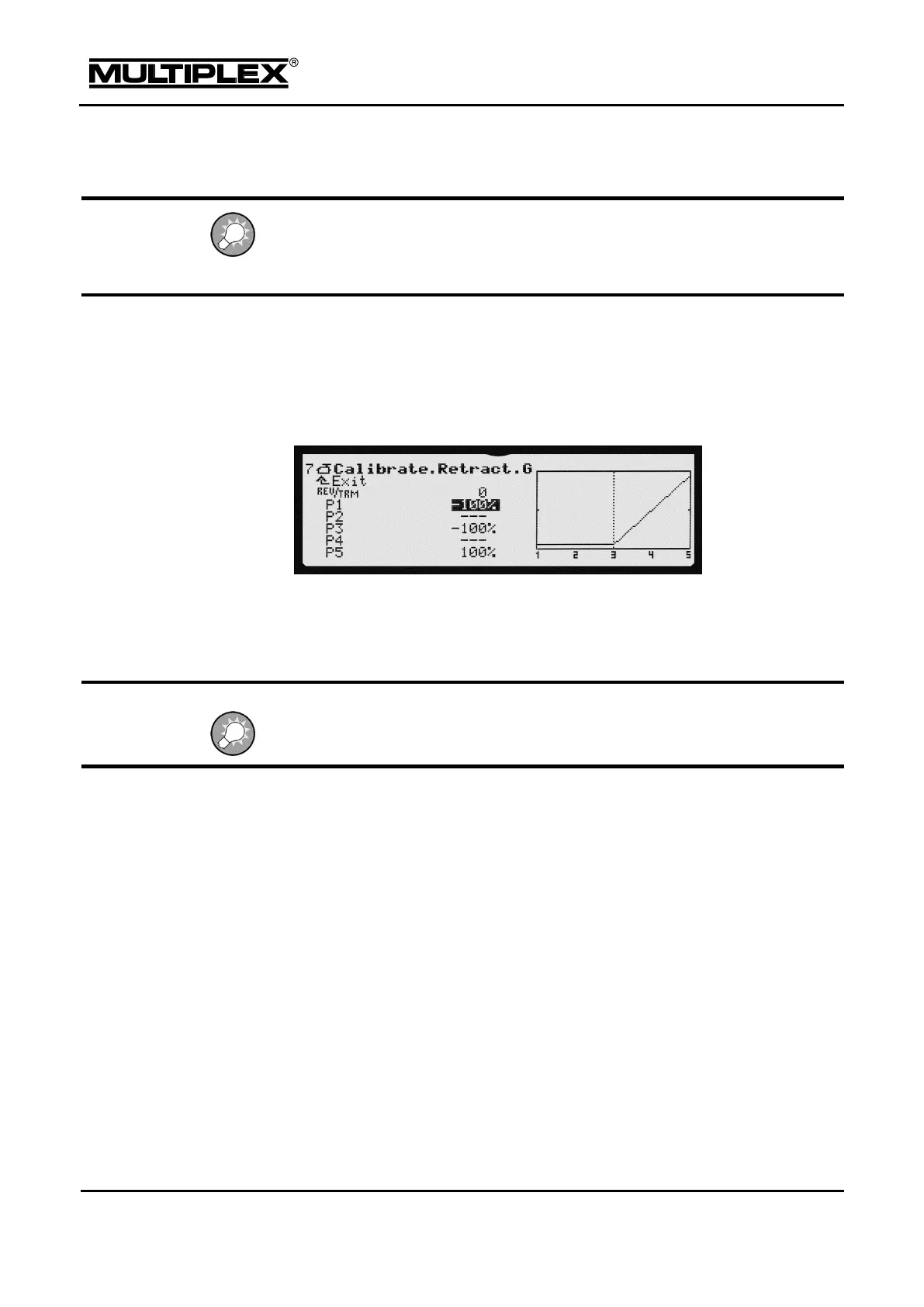

1. Open the Servo main menu.
2. Open the Calibrate menu.
3. Select a servo.
4. Select the P1 menu item and open the parameter.
5. Press the F button. All the swashplate servos now assume this position.
This enables you to set the servo travel regardless of control position and trim.
Pressing the F button again unlocks the servos.
Maximum servo travel = ±110%
If required, servo travel can be increased to up to 110% on both sides.
6. Conclude the calibration for P1.
7. Repeat the procedure for point P5, starting from step 4.
8. Exit the menu and set up the other servos accordingly.
